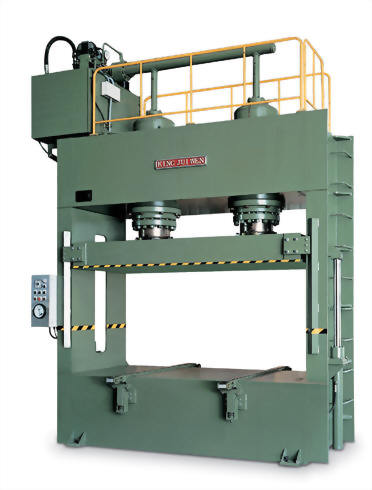

Cold Press

Cold Press





Max. Workable Size :2700Lx1370Wmm

Required Power 14Kw

New designed frame, to ensure machine steady and use life.

With hydraulic system and electric control system.

The ram use metal FCD-50, hardness HRC50~60 with high accuracy processing, the dense proper high not easy oil leak to lengthen the service life, reduces the cost of maintenance.
( the ram all made in TAIWAN )

Specifications

CP500-48 (FOR FANCY PLYWOOD)

Size of products

4' x 8'

Capacity

500 ton

Pressure upon products

13.5 kg/cm2

Size of platen (L x W)

2700 x 1370 mm

Size of daylight

1200 mm

Ram of pressuring

375 x 900-2Sets mm

Ram of rising

80 x 900-2Sets mm

Hydraulic pump motor

1.5kw x 4P

Custom machine specifications are available.
