Cold press
Cold press (Pre press)
‧ Plywood can be made effectively without trouble from high moisture veneer..
‧ Troubles inside hot press caused by turning of veneer and produced rate of inferior plywood were remarkably decreased and as a result, operation rate of hot press was raised up.

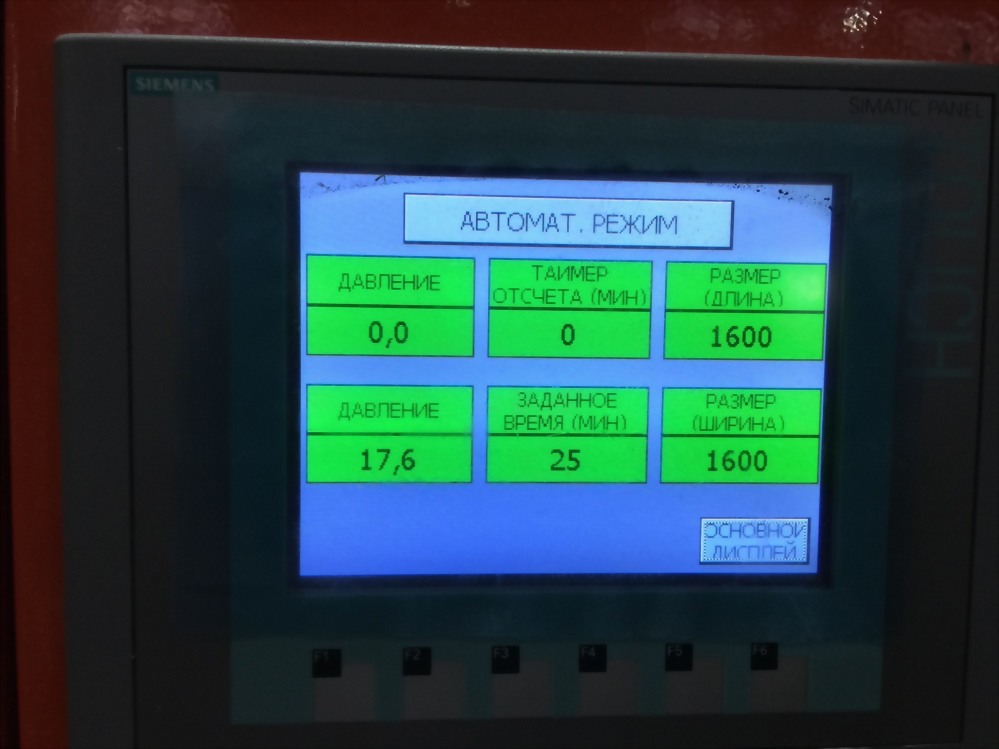

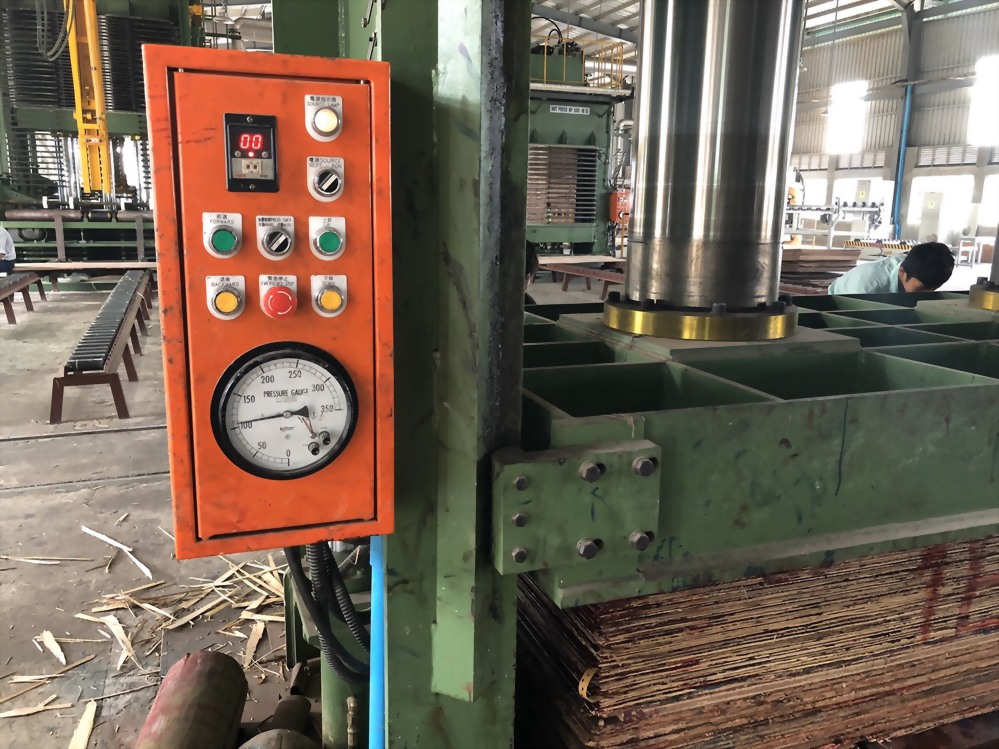

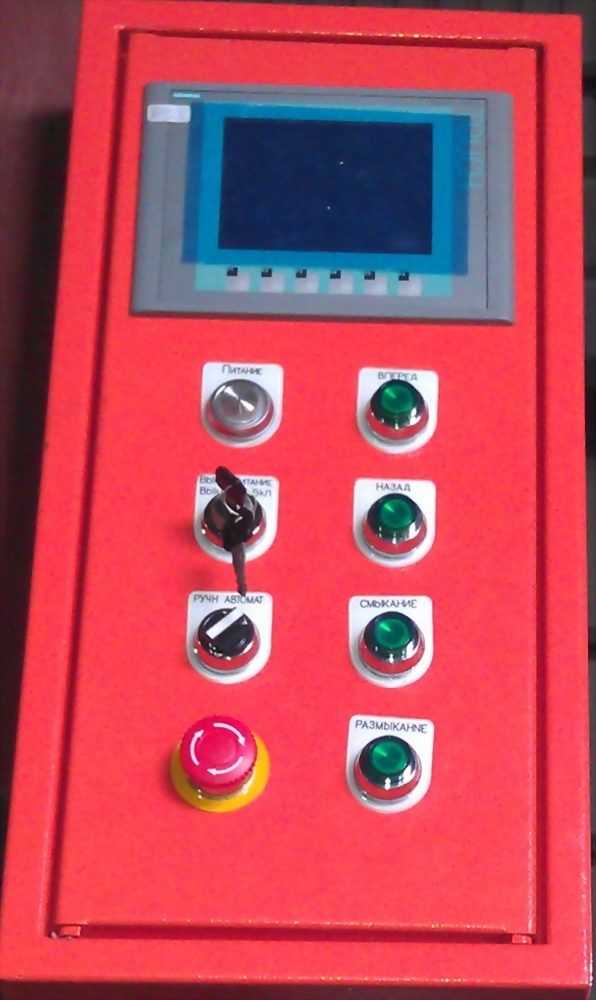

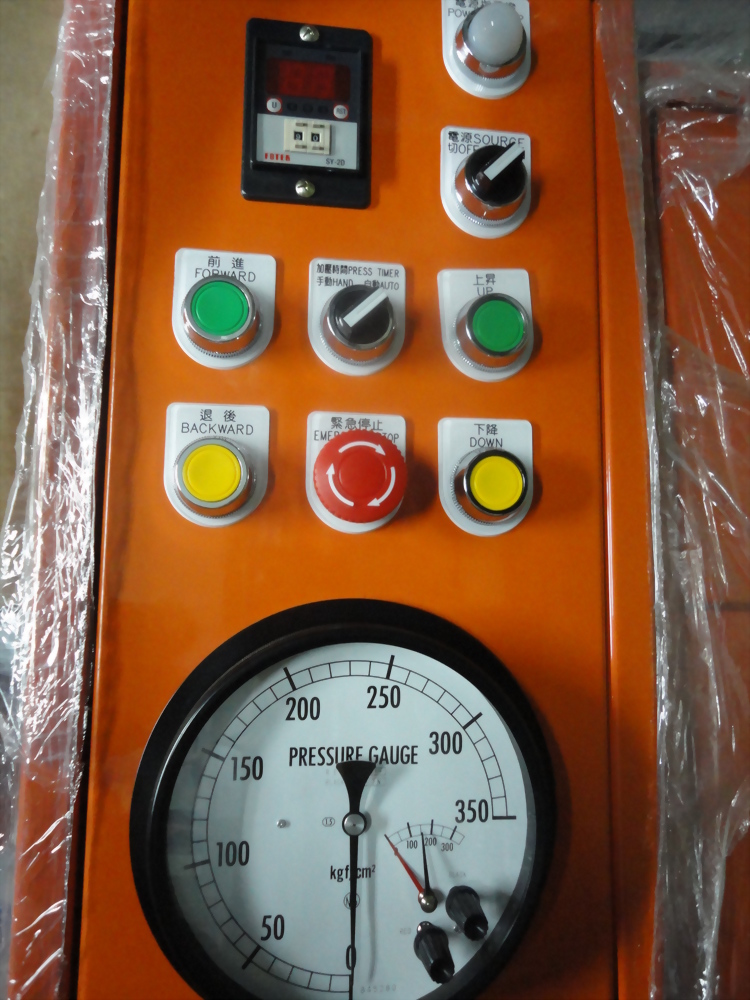

‧ Control by pressure gauge with micro switches, and compresses automatically if pressure will be down from your setting pressure

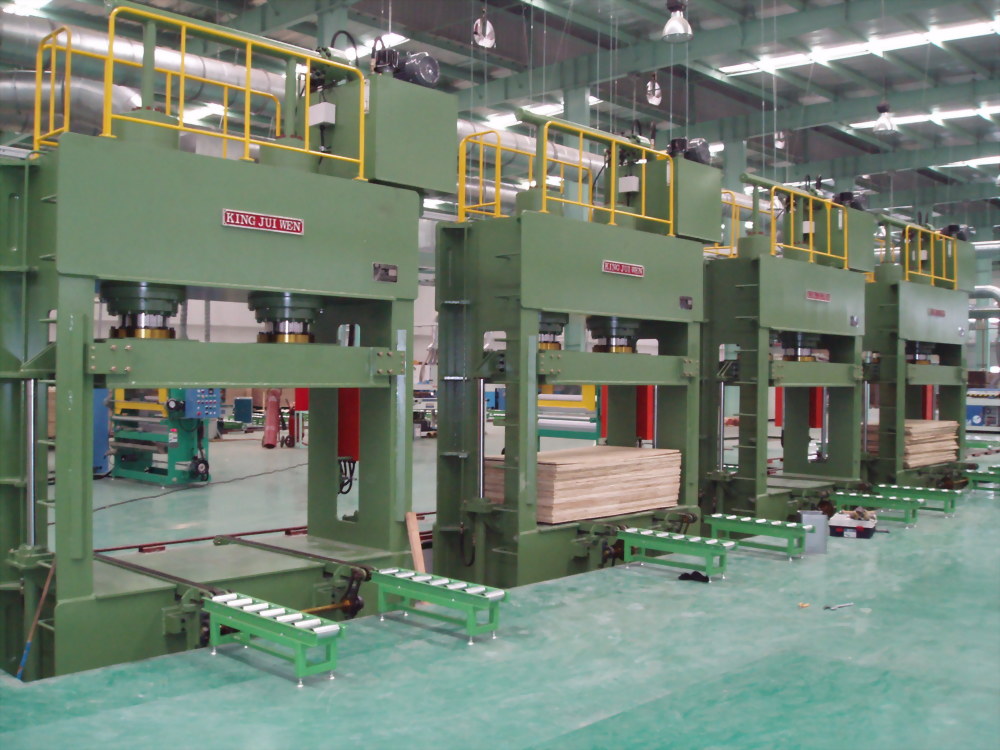

‧ New designed frame, to ensure machine steady and use life
‧ The ram use metal FCD-50, hardness 50~60 with high accuracy processing. the dense proper high not easy oil leak to lengthen the service life, reduce the cost of maintenance
|
Type |
Size of product |
Size of platen |
Total pressure |
Unit pressure |
Main Ram |
Up Ram |
Daylight |
Ram stroke |
|
CP200-48 |
4'x8 |
1370x2700mm |
200ton |
6.7kg/cm² |
Ø250mm X2pcs |
Ø80mm X2pcs |
1200mm |
900mm |
|
CP300-36 |
3'x6' |
1100x2100mm |
300ton |
18.1kg/cm² |
Ø300mm X2pcs |
Ø60mm X2pcs |
1200mm |
900mm |
|
CP350-55 |
5'x5' |
1800x1800mm |
350ton |
13.6kg/cm² |
Ø330mm X2pcs |
Ø70mm X2pcs |
1200~1500mm |
900~1200mm |
|
CP500-55 |
5'x5' |
1800x1800mm |
500ton |
19.5kg/cm² |
Ø375mm X2pcs |
Ø70mm X2pcs |
1200~1500mm, |
900~1200mm |
|
CP500-48 |
4'x8' |
1370x2700mm |
500ton |
16.8kg/cm² |
Ø375mm X2pcs |
Ø80mm X2pcs |
1200~1700mm, |
900~1400mm |
|
CP750-48 |
4'x8' |
1400x2800mm |
750ton |
24kg/cm² |
Ø450mm X2pcs |
Ø80mm X2pcs |
1200~1700mm, |
900~1400mm |
|
CP650-4x10 |
4'x10 |
1400mmx3300mm |
650ton |
15.2kg/cm² |
Ø375mm X3pcs |
Ø80mm X2pcs |
1200~1700mm |
900~1400mm |
|
CP750-5x10 |
5'x10' |
1800mmx3300mm |
750ton |
16.4kg/cm² |
Ø450mm X2pcs |
Ø100mm X2pcs |
1200~1700mm |
900~1400mm |
|

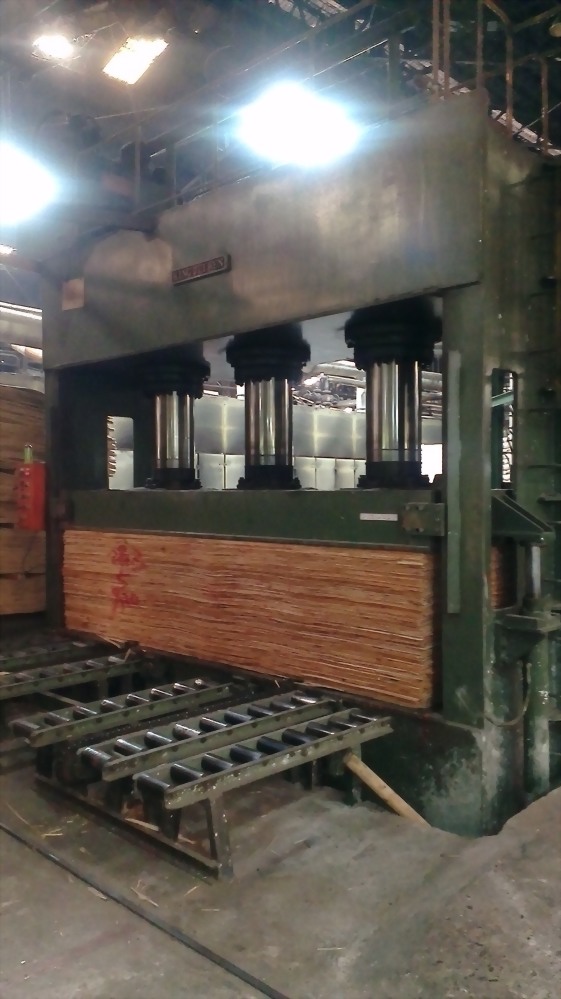

CP700-4x12 |
4'x12' |
1400mmx3900mm |
700ton |
14.6kg/cm² |
Ø375mm X3pcs |
Ø100mm X2pcs |
1200~1500mm |
900mm |
‧ Custom machine specifications are available.
