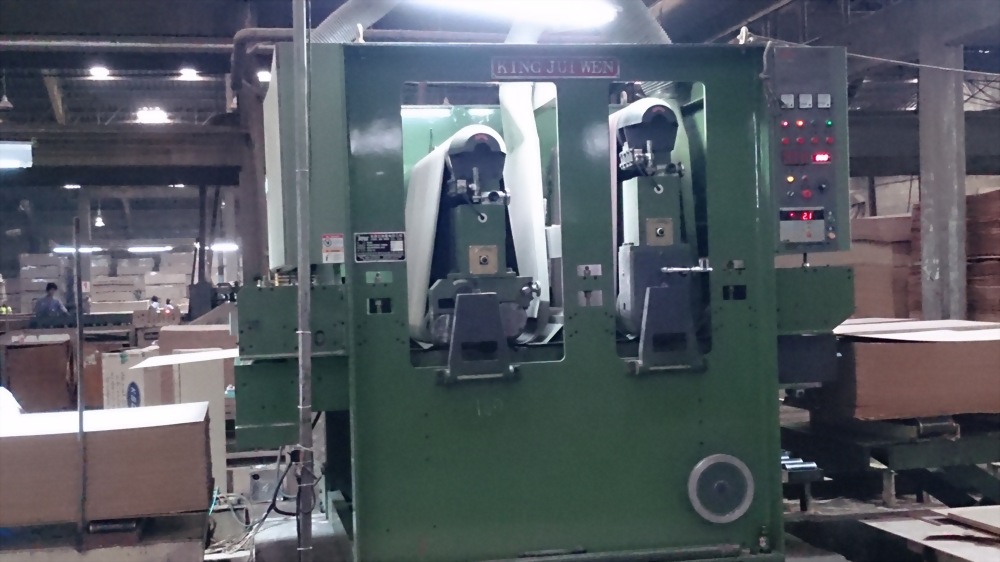

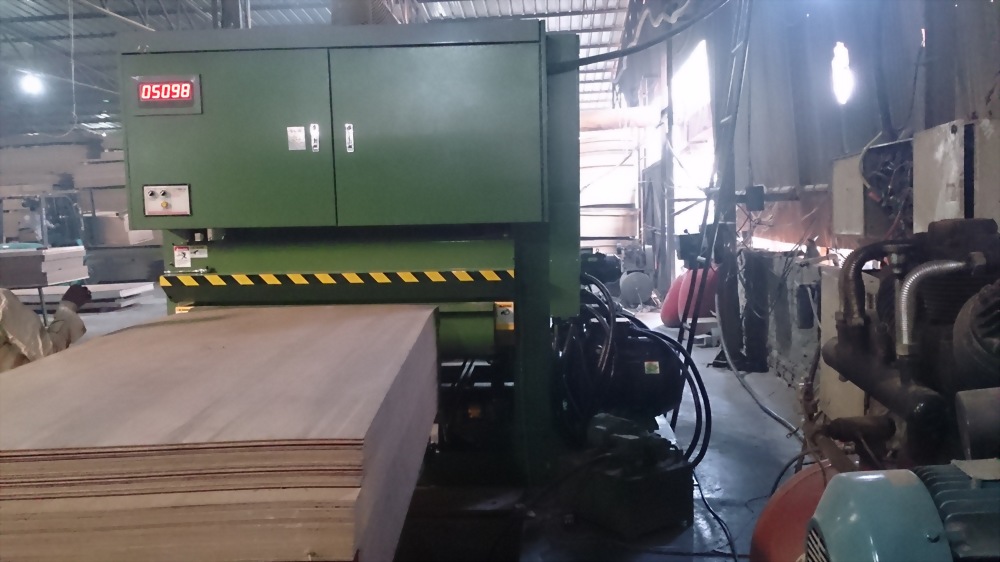

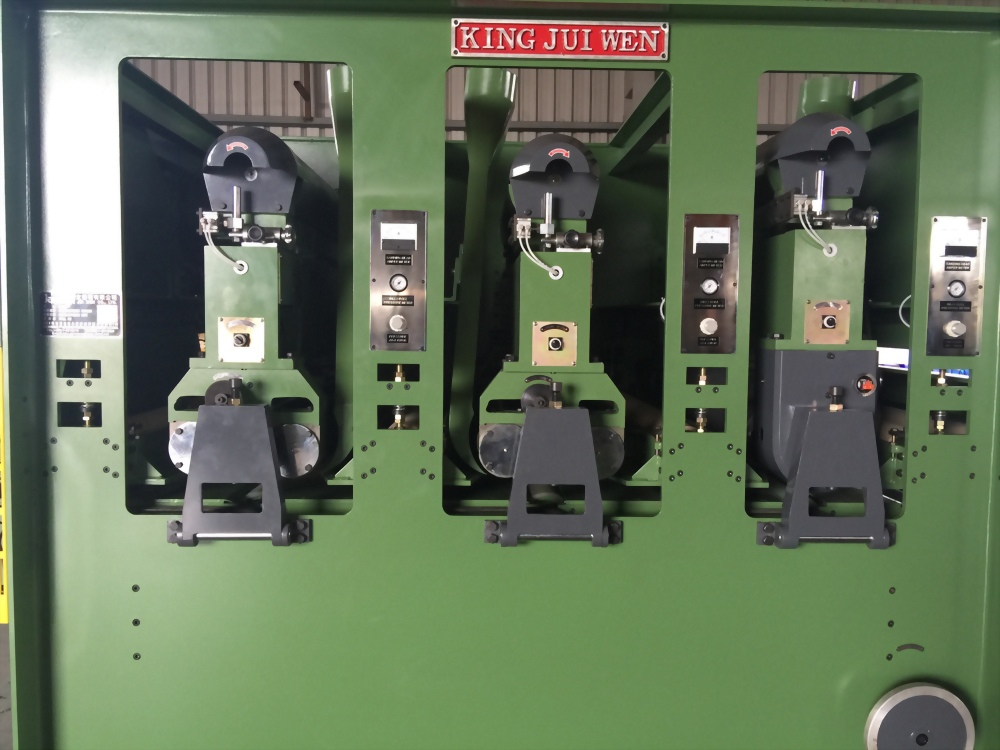

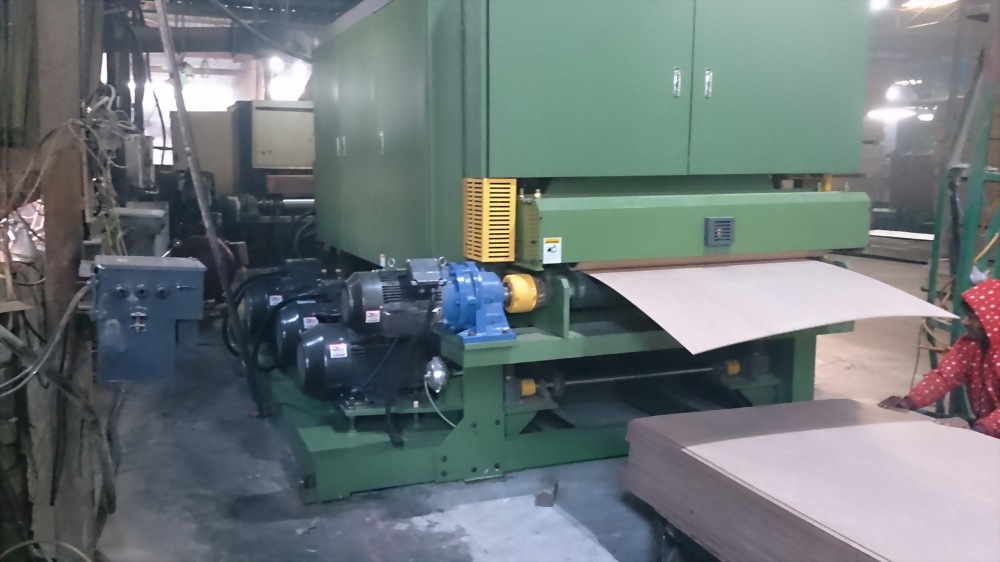

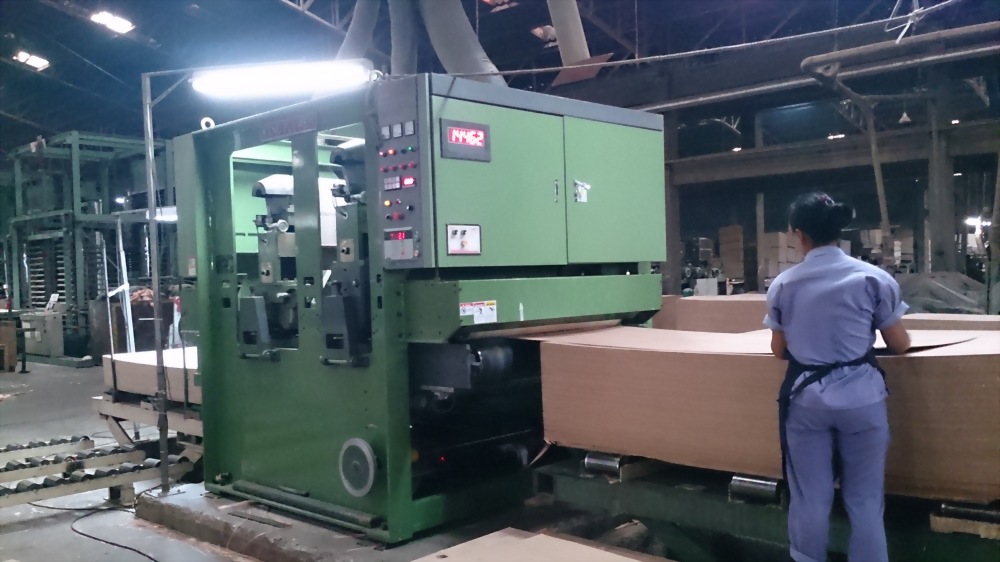

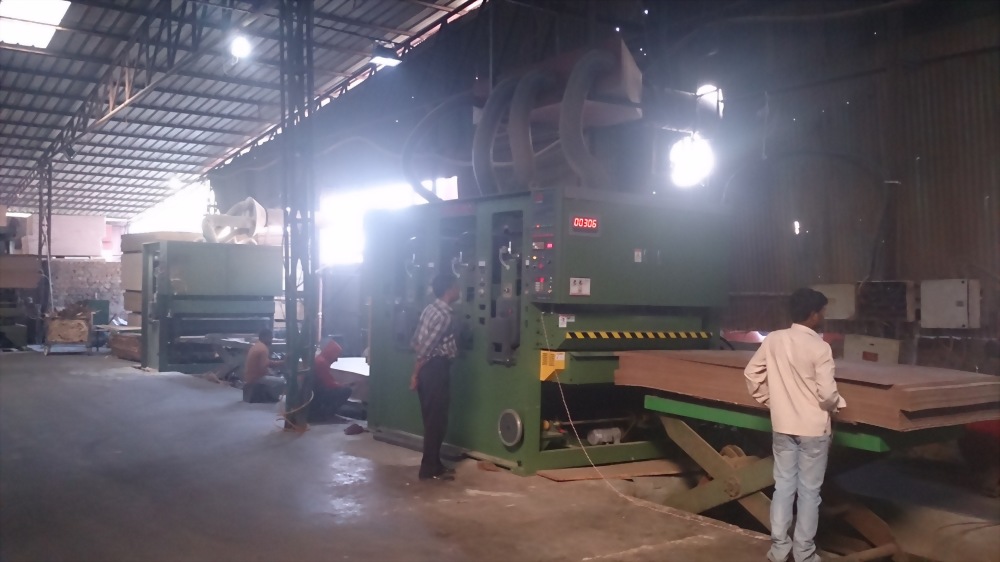

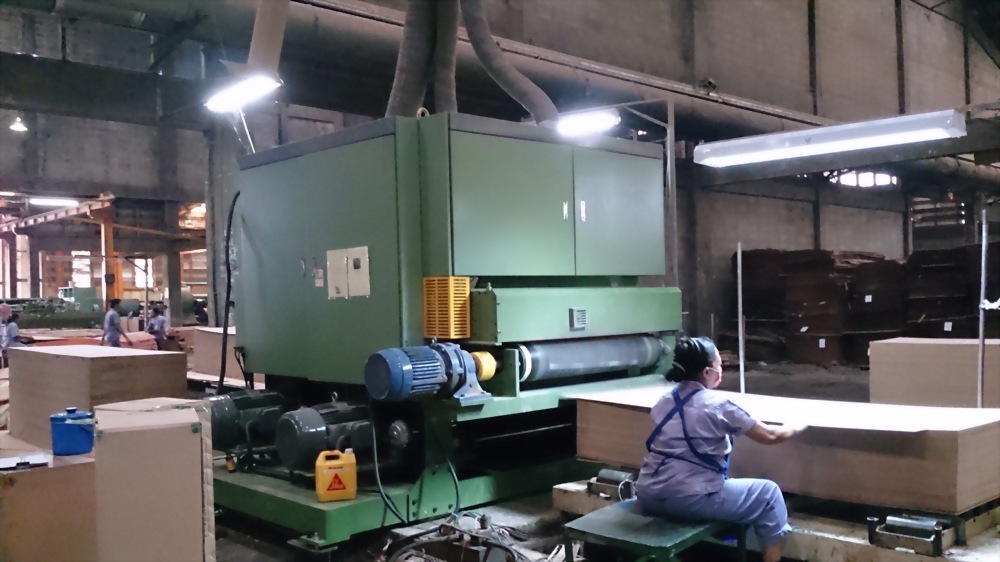

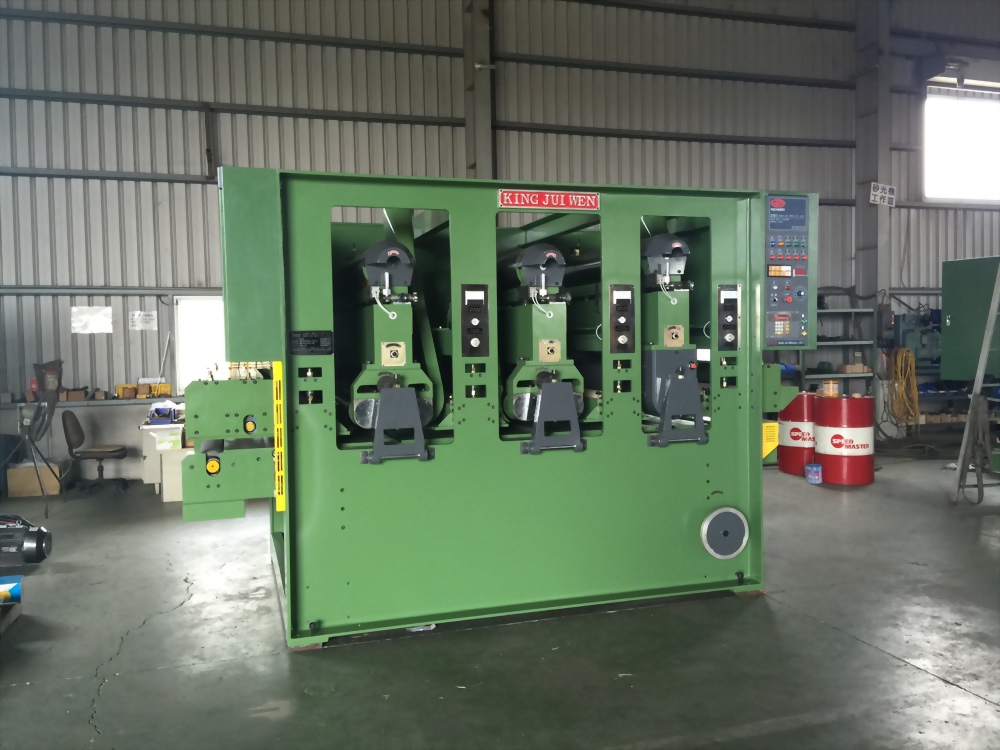

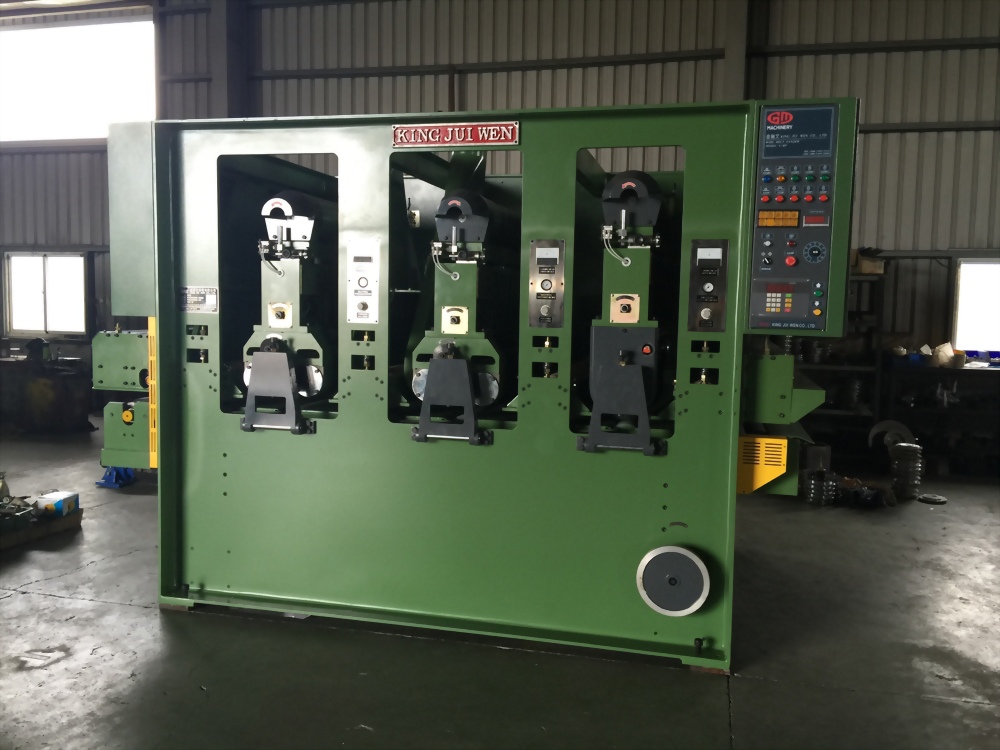

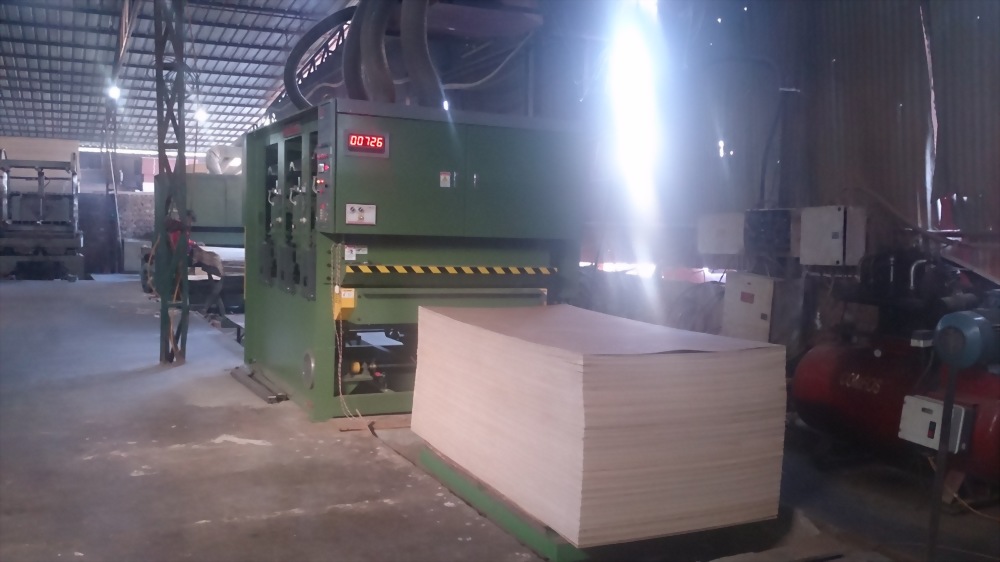

Fancy plywood Sander
Max. Workable Size : 1270(W)mm
‧Superior thickness accuracy and surface finish.
‧Suitable for big capacity plywood production.

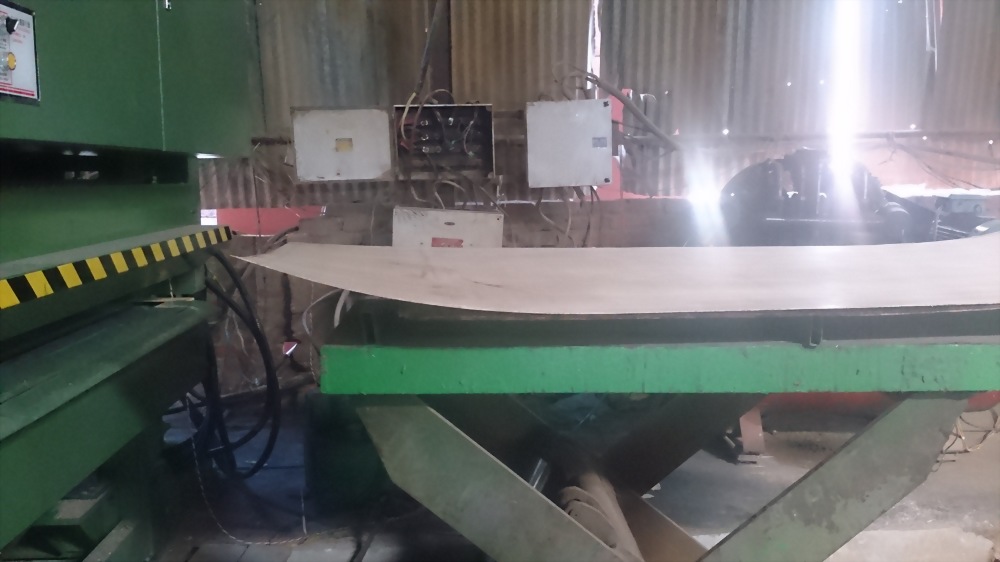

‧Choice of roller feeding conveyor or belt
‧feeding conveyor type.
‧Safety and easy maintenance.
‧We can change to all sanding roller or sanding
‧platen type as your request.
| Model | SF-2RP | SF-3RPP | SBF-2RR | SBF-3RPP |
| Max, workable width | 1270 mm | 1270 mm | 1270 mm | 1270 mm |
| Min. workable length | 780 mm | 780 mm | 780 mm | 780 mm |
| Variable feeding speed | 30~100 M/Min | 30~100 M/Min | 30~100 M/Min | 30~100 M/Min |
| Motor for no.1 sanding head |
30KW (40HP) RUBBER DRUM |
30KW (40HP) RUBBER DRUM |
30KW (40HP) RUBBER DRUM |
30KW (40HP) RUBBER DRUM |
| Motor for no.2 sanding head |
30KW (40HP) SANDING PAD |
30KW (40HP) SANDING PAD |
30KW (40HP) SANDING PAD |
30KW (40HP)
|
| Motor for no.3 sanding head | NO |
30KW (40HP) SANDING PAD |
NO |
30KW (40HP) SANDING PAD |
| Reducer for feeding conveyor | 5.5 KW(7.5HP) | 7.5KW (10HP) | 5.5KW(7.5HP) | 7.5KW(10HP) |
| Reducer for elevation (up & down) | 0.75KW (1HP) |
0.75KW (1HP) |
0.75KW (1HP) | 0.75KW (1HP) |
| Motor for brushing roller | 0.75KW (1HP) | 0.75KW(1HP) | 075KW(1HP) | 0.75KW(1HP) |
| Sanding belt size | 51" (W) x 103" | 51" (W) x 103" |
51" (W) x 103" |
51" (W) x 103" |
| Custom machine specifications are available | ||||
