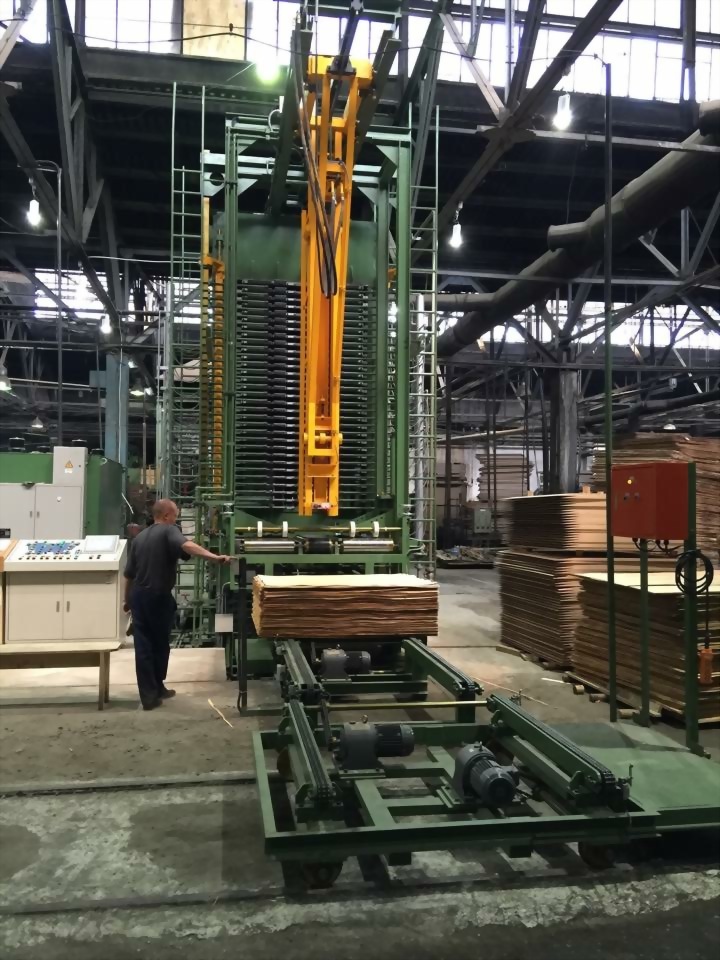

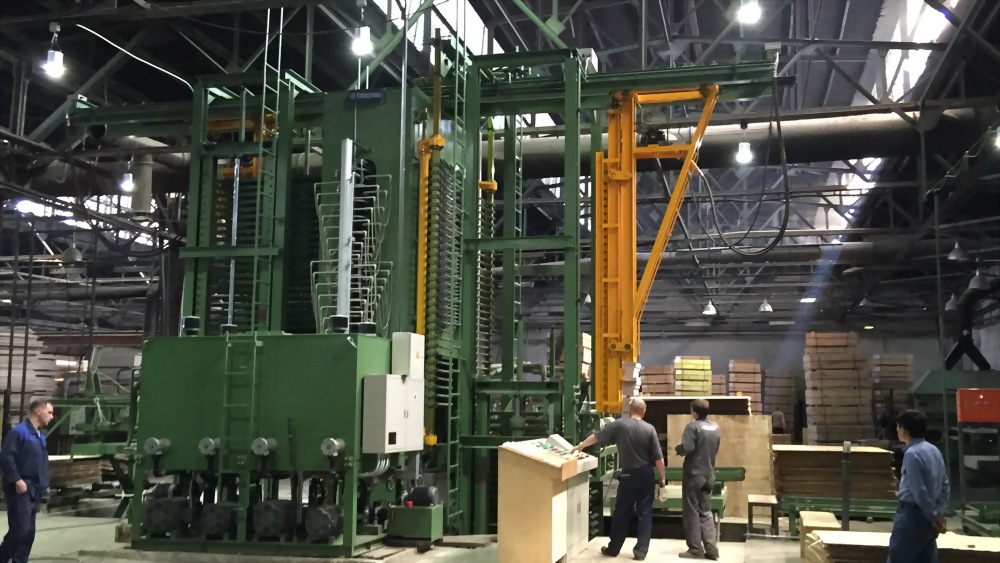

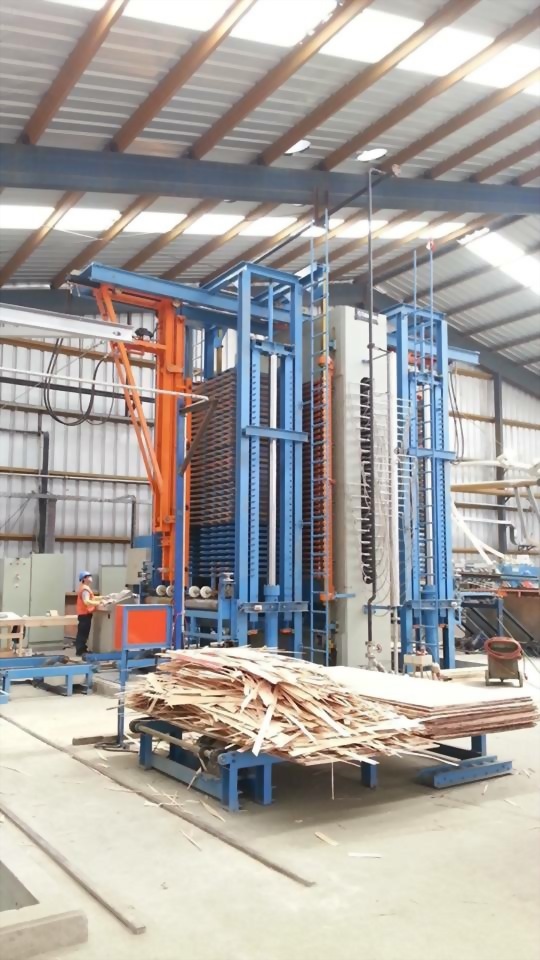

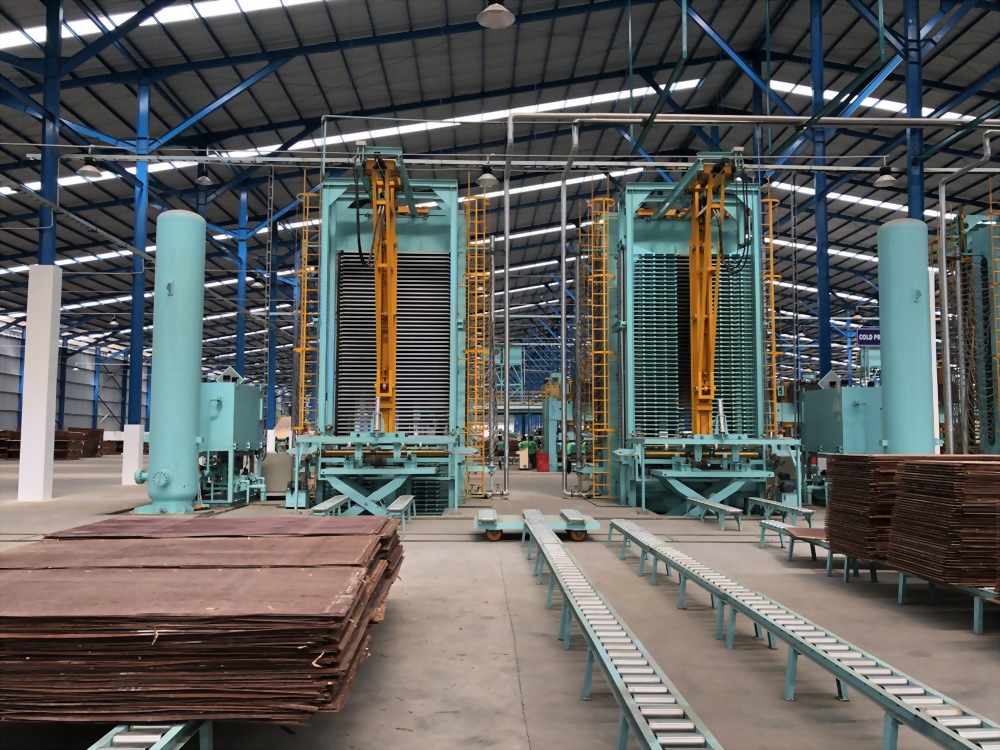

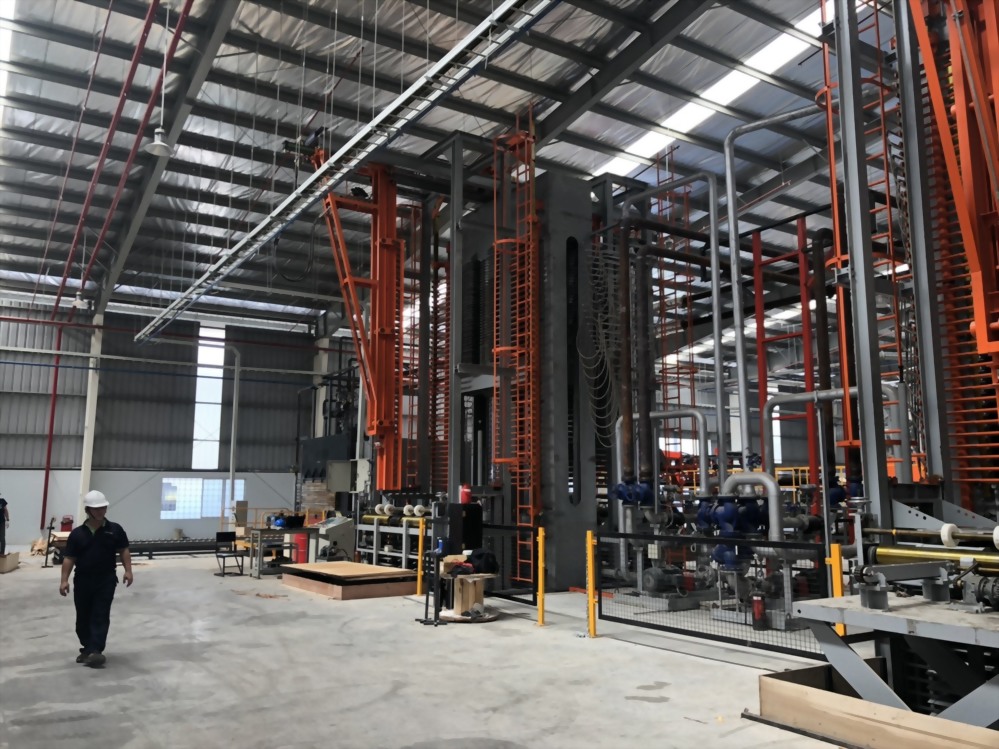

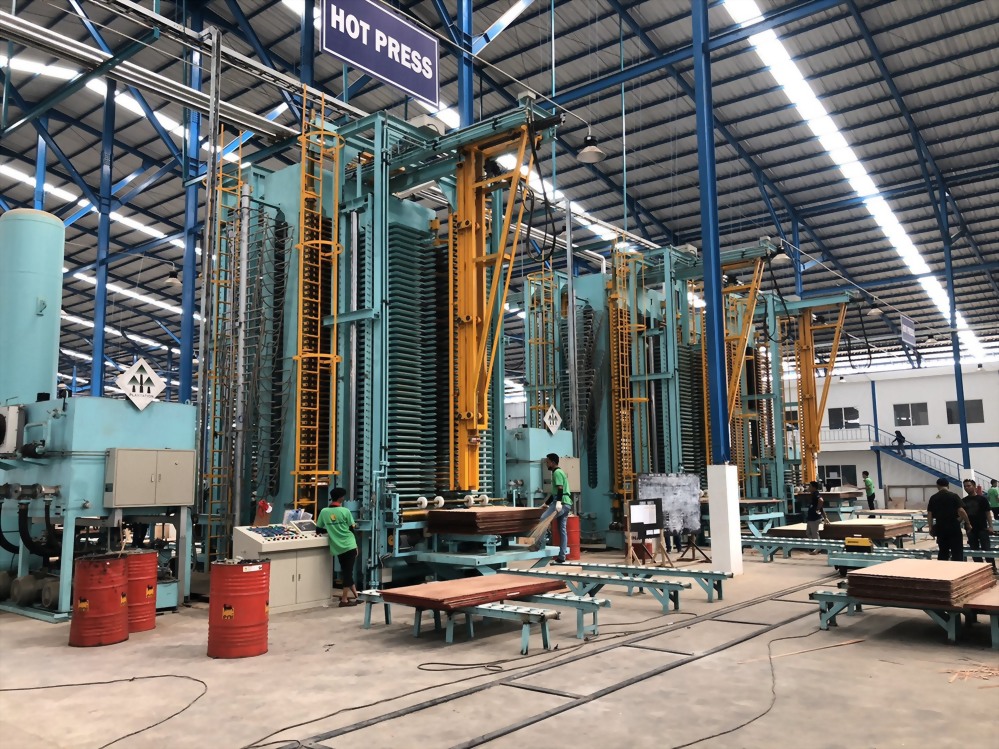

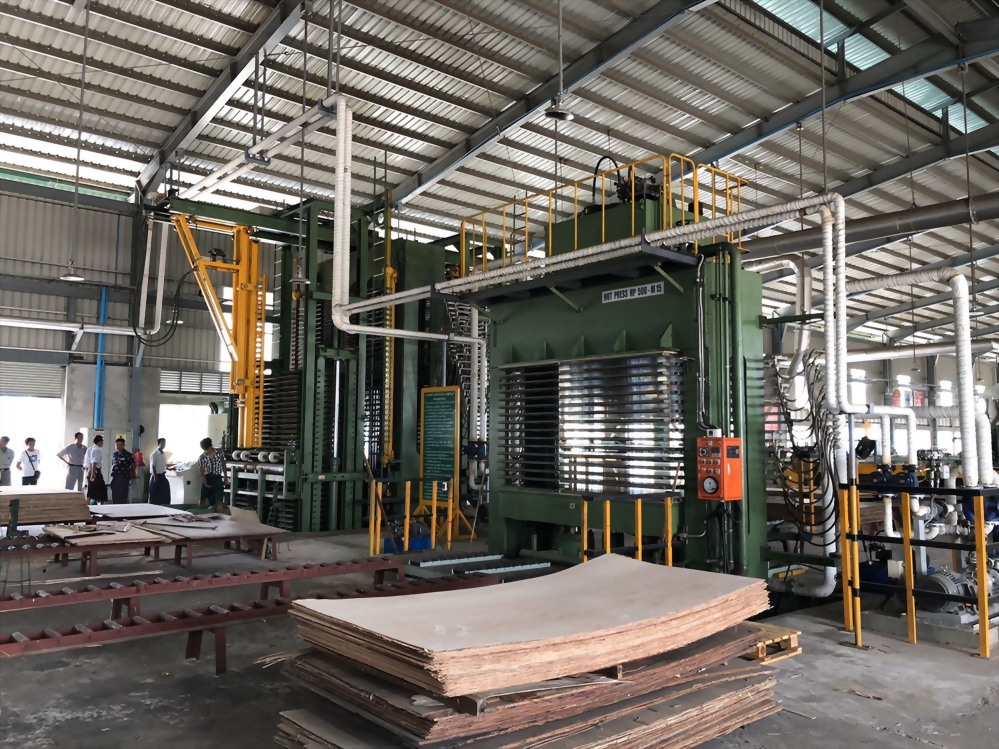

Automatic Hot Press
Energy Saving

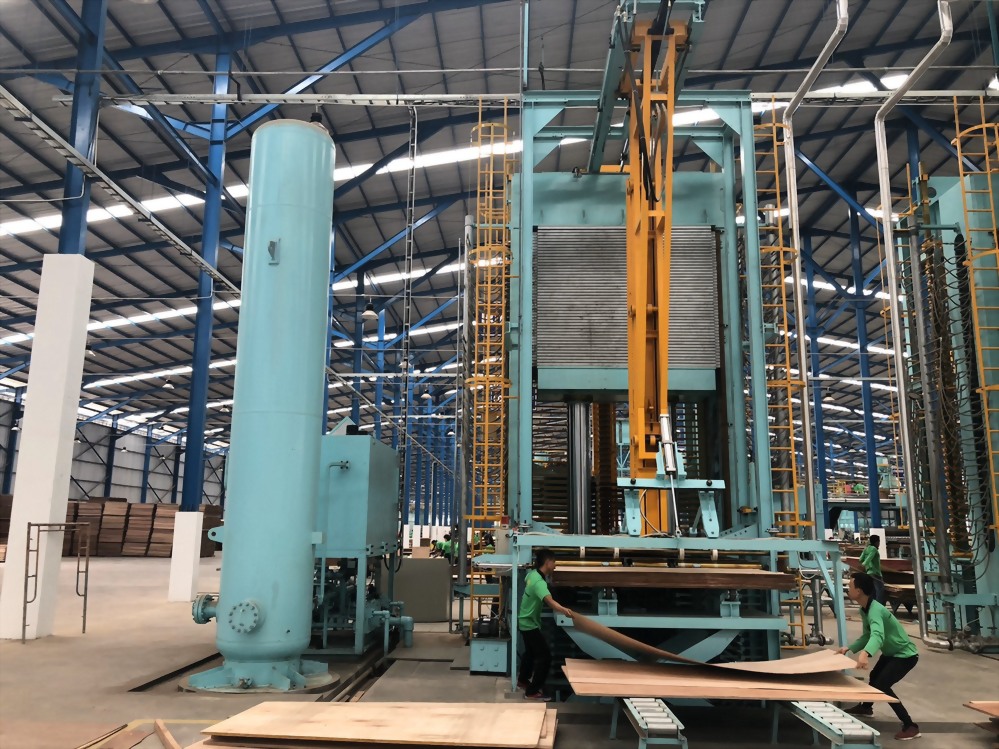

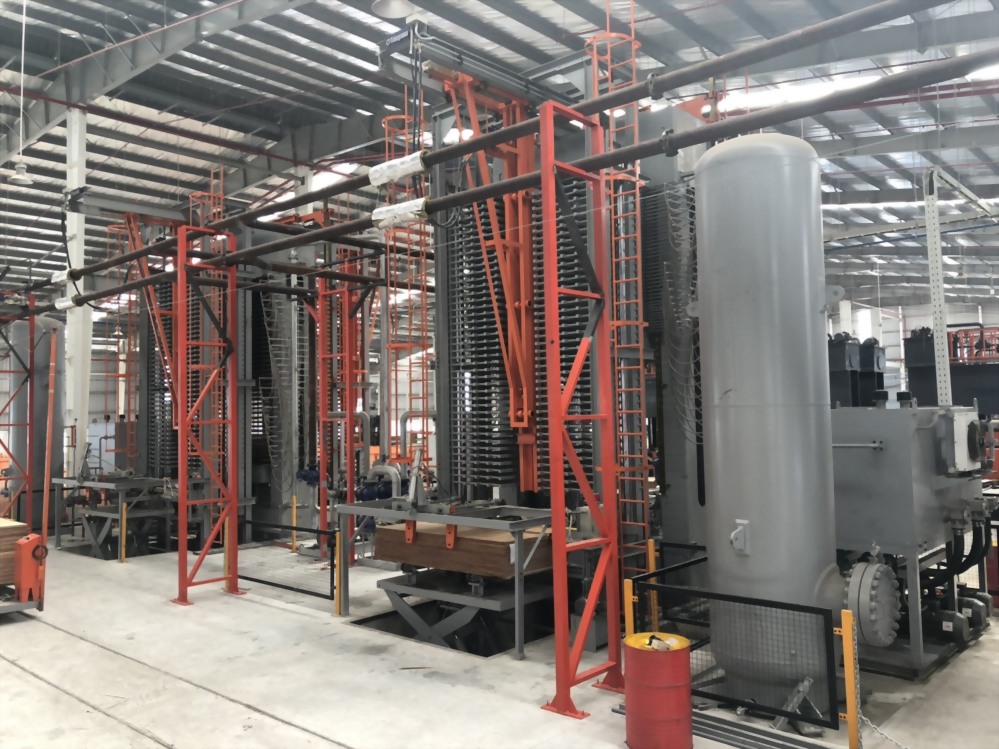

•The lifting is assisted by pressurized
nitrogen gas to save energy and
faster operation. It will prevent
pumps overheating and overloading.
•The pressure in the nitrogen tank is
controlled by a smart control system.
Pump platform supply and transfer
control motion are decided upon
pressure volume so as to level
operation.
Superior high-speed operation
and high production capacity
patented ....

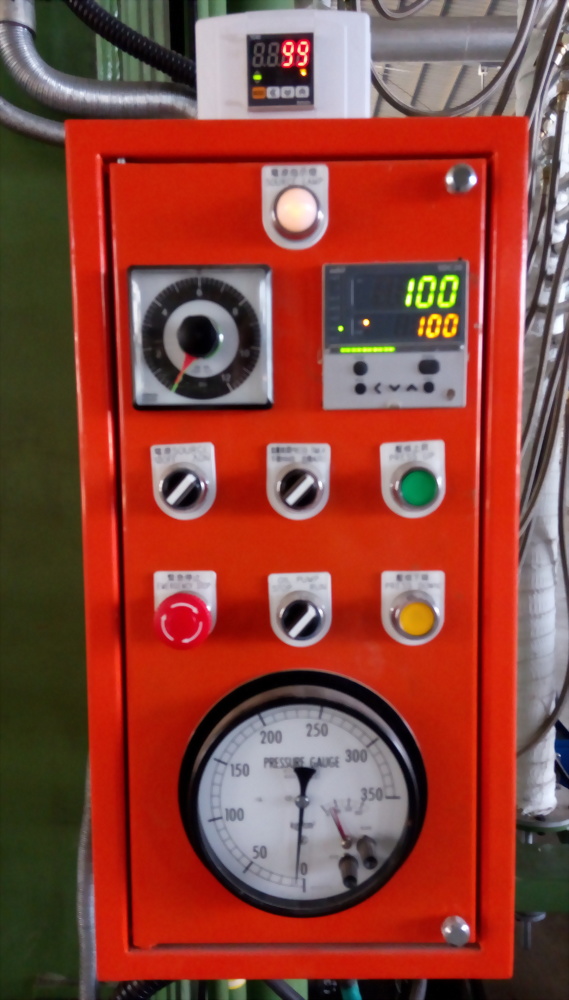

Smart Control System
•Use touch control panel and PLC control system, professionaland accurately controlled by computer to save lobor.
•It has a database for 48 product sets for pressure, temperature
and time. The operator only needs to select the size and
thickness of the products and the press can operate effective
with proper hot press settings.
•There is a clear warning system. When errors happen, the loud
and clear alarm signal will remind operator to check machine
condition to avoid damage.
Time Saving
•The clamp is covered with rubber to avoid damage to the plates.
•The Pusher & Puller of the clamp are controlled by hydraulic
cylinders and can clamp the plate simultaneously.
The clamp moves toward the center from top and bottom
simultaneously.
•It can clamp the plate more preciously without
damaging the surface. The efficiency is higher with shorter loading
and uploading time.
Easy Installation

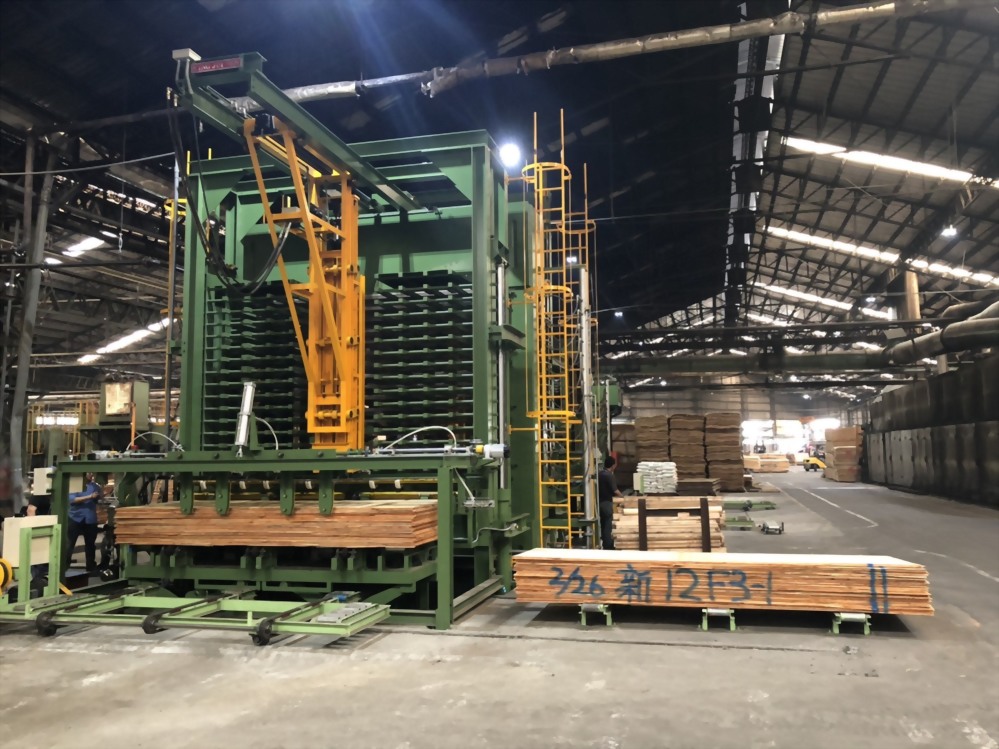

•For operators’ easy and exact feeding, large rollers are adopted. The distance between input & output conveyor and table lifter is short.
•The input conveyor has a feeding guide to avoid veneer drawn and bended.
•There is pusher on the output conveyor, it will push the veneer straight out. Table lifter has a belt conveyor and can load quickly.
|
Type |
Size of product |
Size of platen |
Total pressure |
Unit pressure |
Main Ram |
Daylight |
|
HP550-55-A(20~45) |
5'x5’ |
1800x1700mm |
550ton |
23.6kg/cm² |
Ø400mm X2pcs |
60~100mm |
|
HP500-48-A(20~50) |
3'x6'~4x8’ |
1370x2700mm |
500ton |
16.8kg/cm² |
Ø375mm X2pcs |
60~80mm |
|
HP750-48-A(20~45) |
4’X8’ |
1400x2800mm |
750ton |
24kg/cm² |
Ø450mm X2pcs |
60~90mm |
|
HP800-5X10-A(20~40) |
4'x8'~5X10’ |
1750x3300mm |
800ton |
17.5kg/cm² |
Ø500mm X2pcs |
60~90mm |
|
HP1000-5X10-A(20~40) |
4'x8'~5X10’ |
1750x3300mm |
1000ton |
21.8kg/cm² |
Ø450mm X3pcs |
60~90mm |
|
HP750-4X12-A(10~20) |
4'x8'~4X12’ |
1370x3900mm |
750ton |
16.8kg/cm² |
Ø375mm X3pcs |
100~150mm |

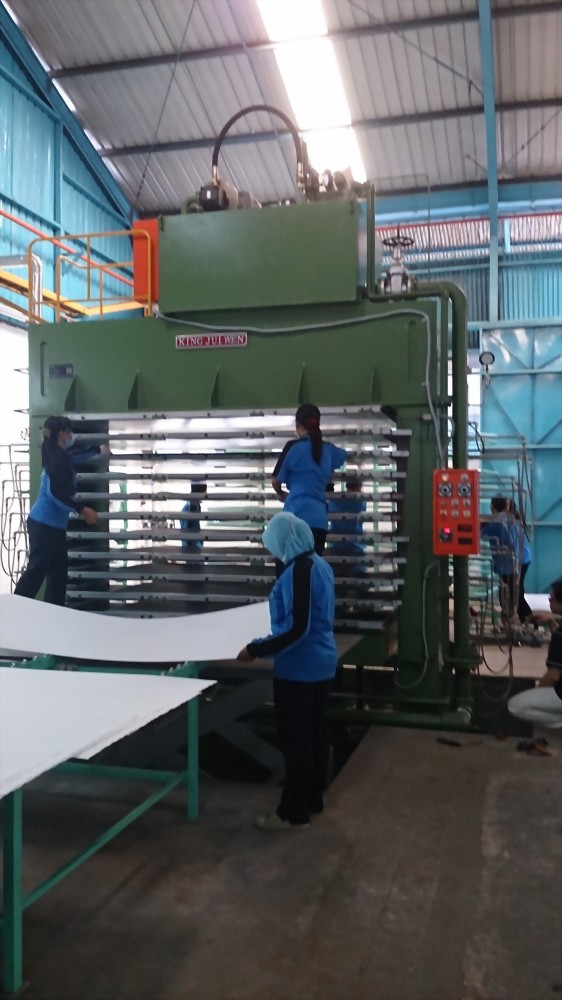

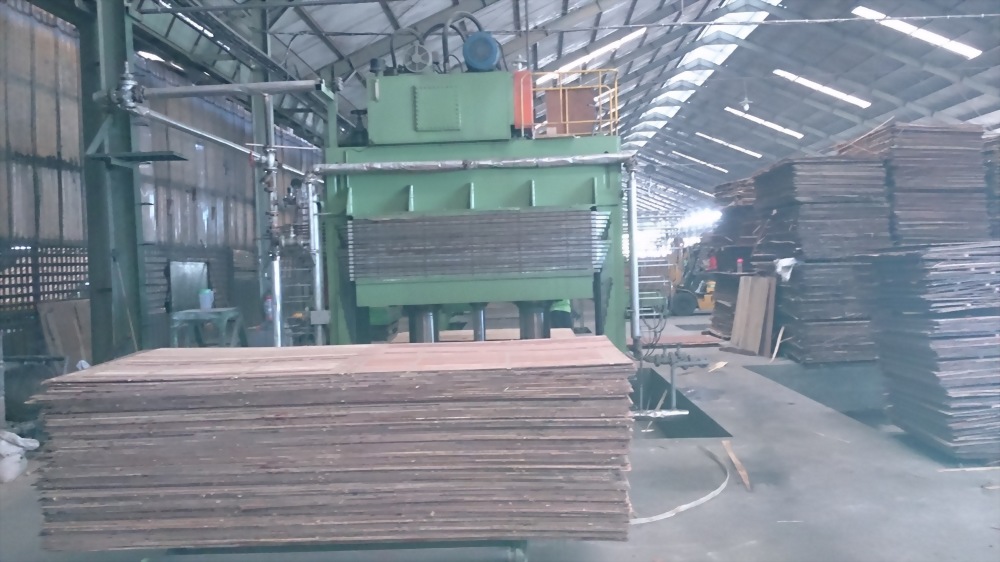

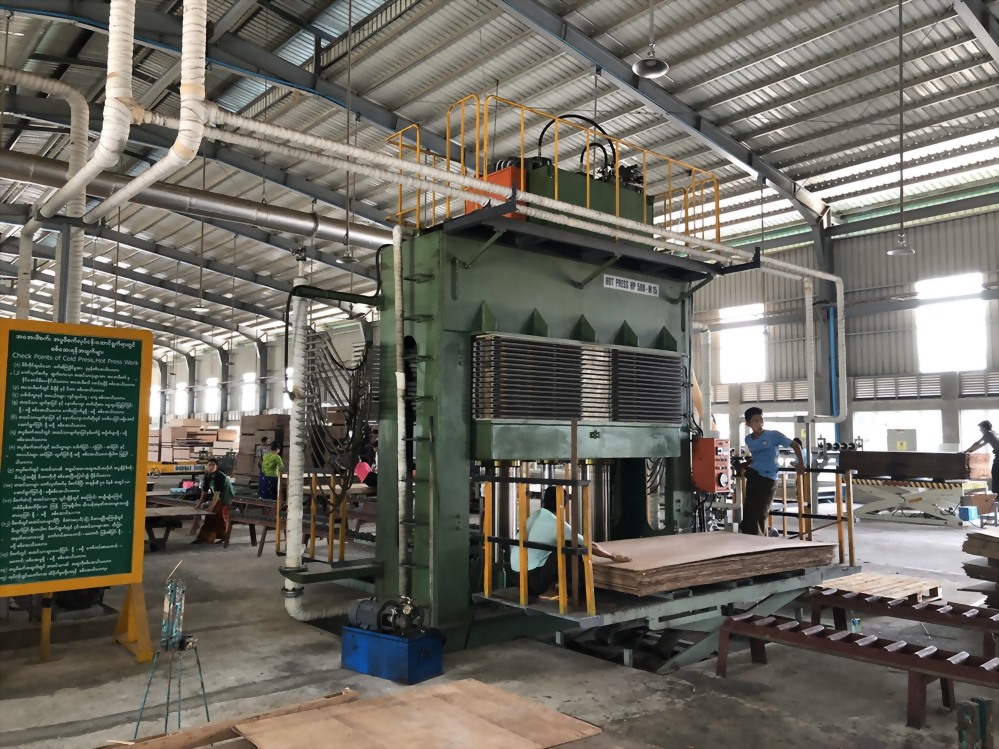

Hot Press (Manual Type)
Model: HP-500-(4’x8’)
•New designed frame, to ensure machine steady and use life.
•Auto temperature-controlled system, acceptheat even.
•With hydraulic system for high speedmovement, saving time and raisingproducing ability.
•The ram use metal FCD-50, hardnessHRC50~60 with high accuracy processing. High tightness avoids oil
leaking lengthen service life, reduces cost of
maintenance. (the ram is made in TAIWAN)
