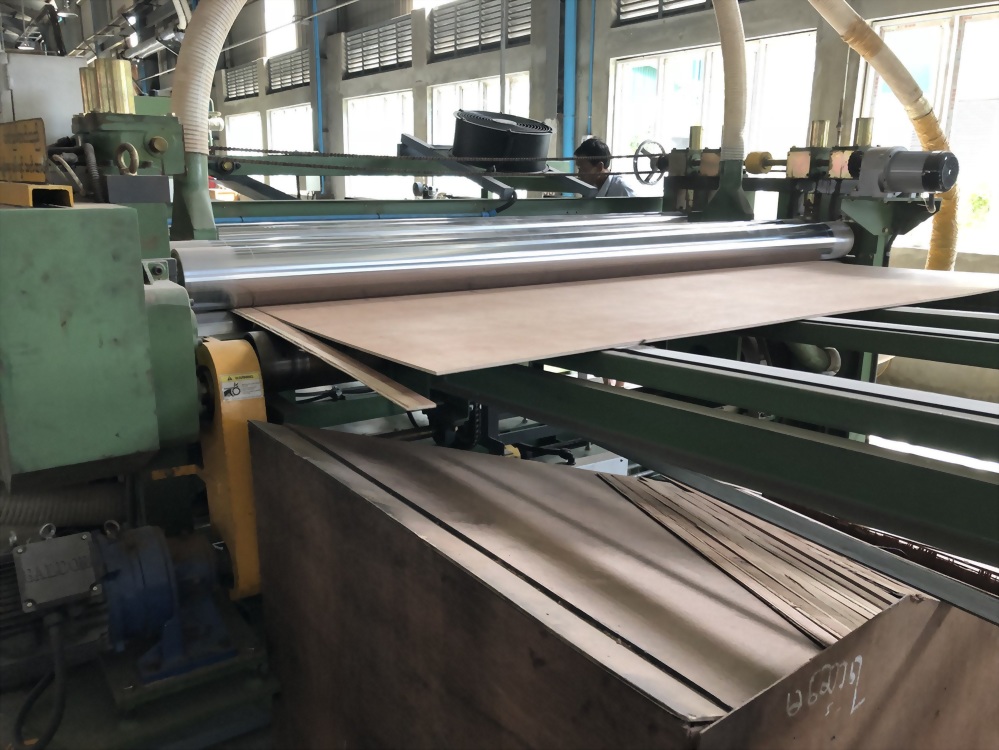

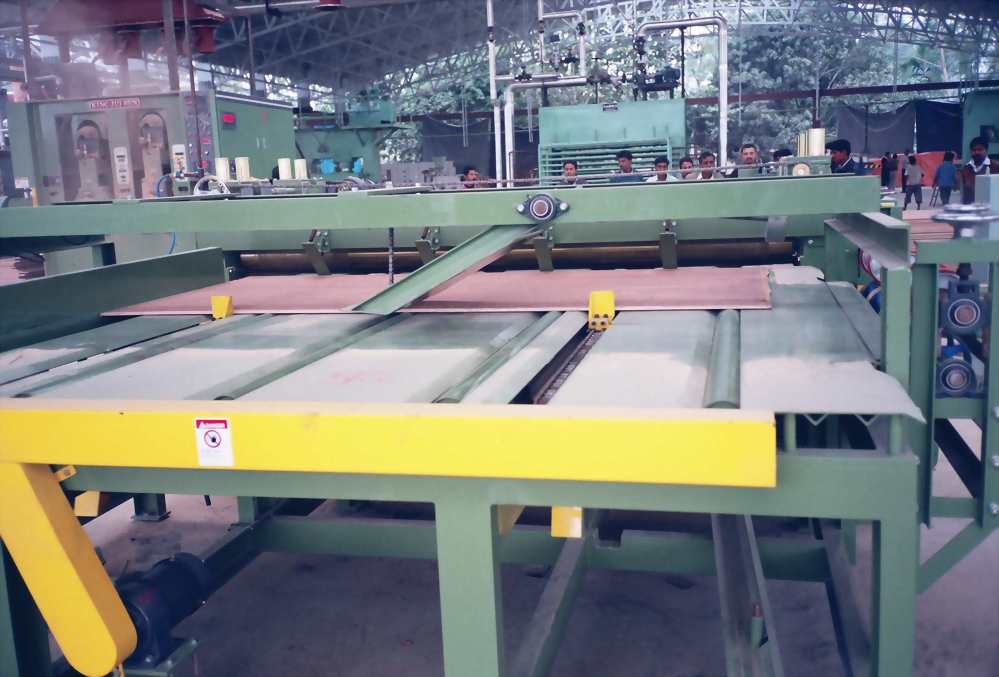

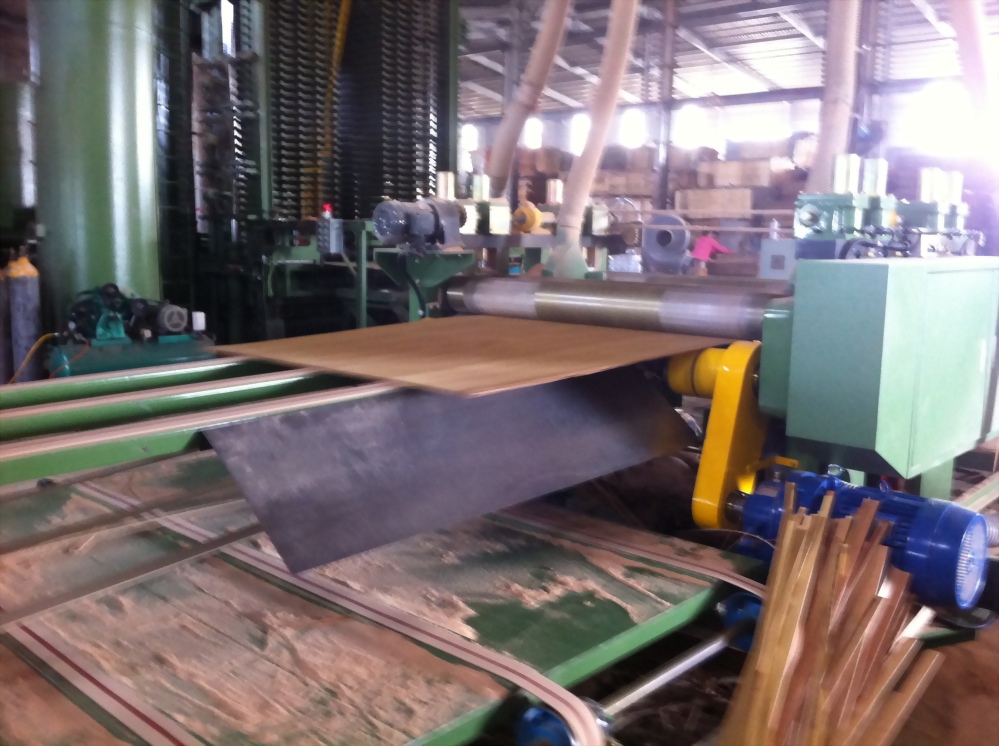

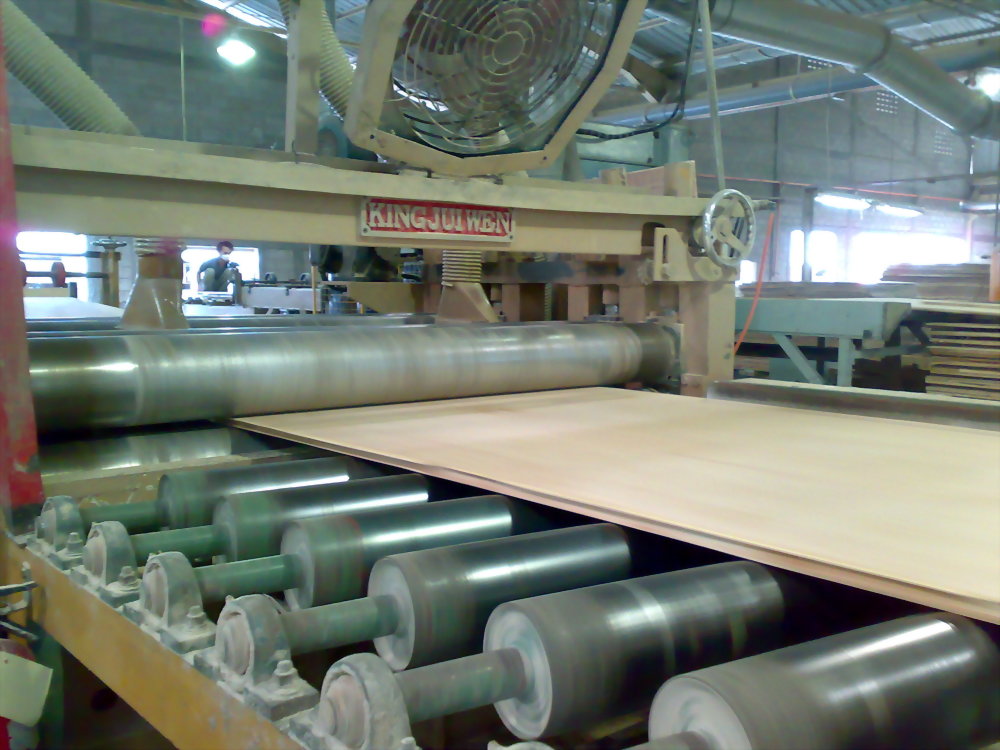

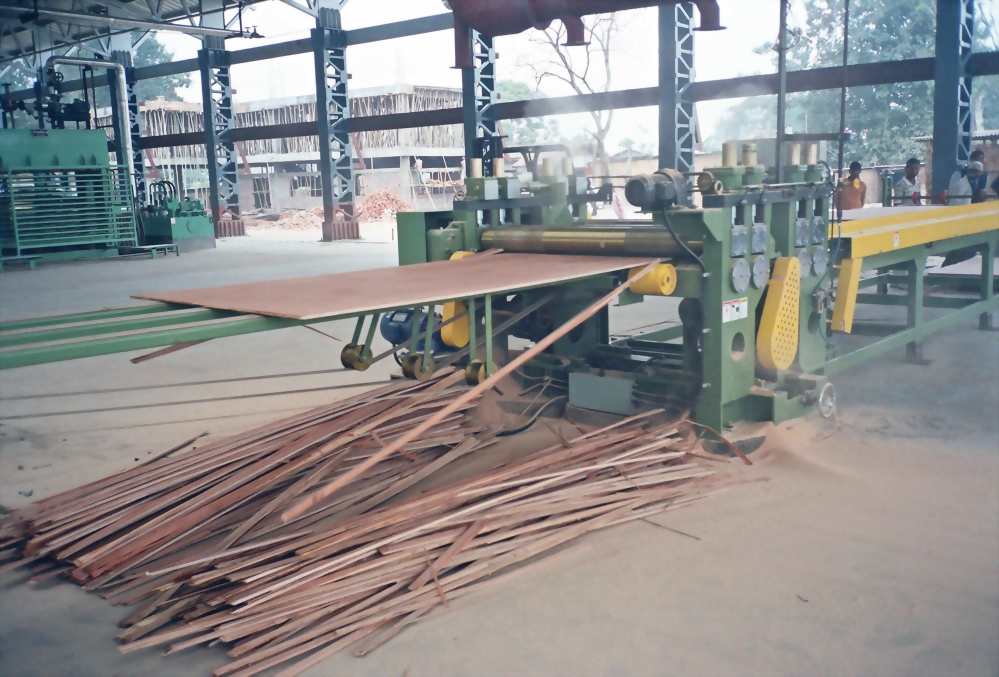

Plywood Double Sizer
Model :
DS Series
1. Perfect cutting size, diagnoal accuracy in your plywood.
2. Strong machine frame for 24 hours no stop running. Safety cover to protect you and machine.
3.Special saw system, accurate bearing set, shaft and high speed bearing. Give you steady and no stop running !
4. Special process feeding roller to accuracy perform plywood in high speed feeding ! The air cylinder is installed for all upper feeding roller. Uniform and suitable pressure is given on the plywood for feeding.

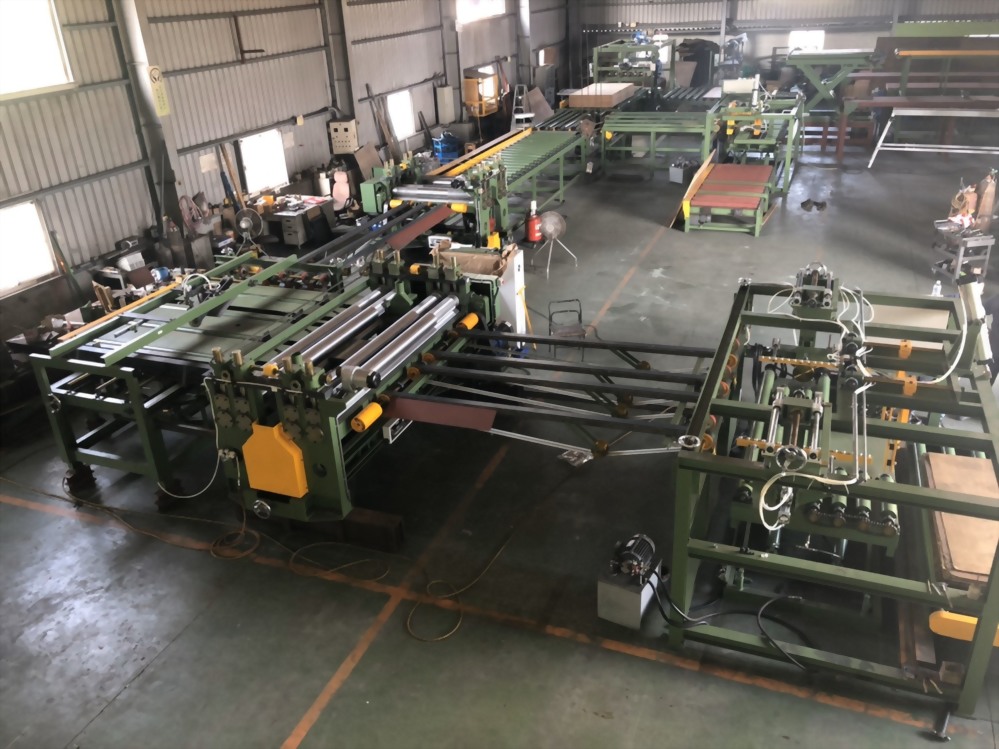

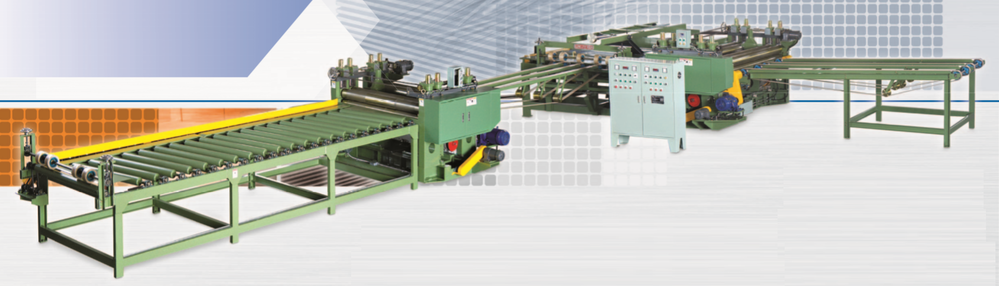

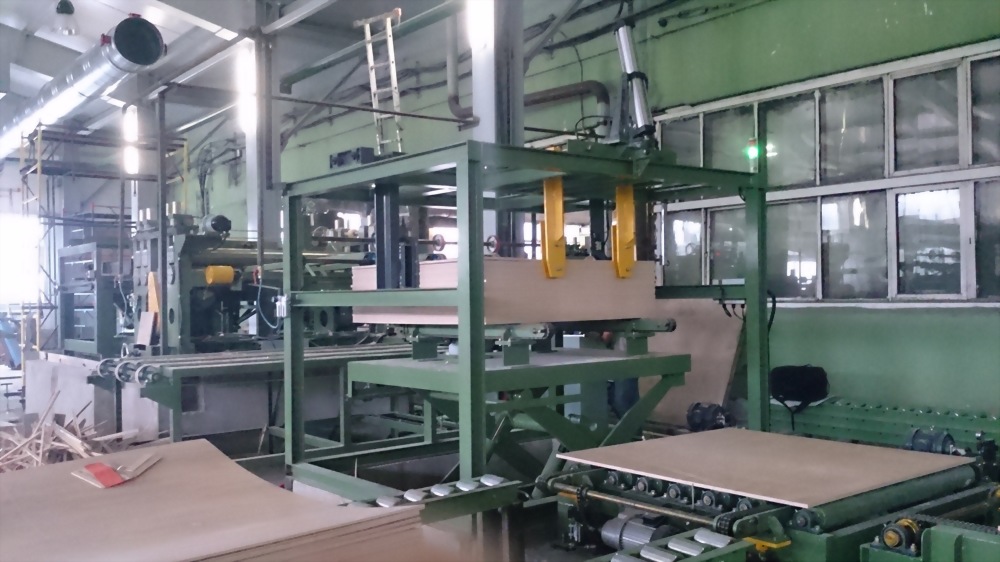

5. Automatic process line, safety and save your money.
6. Max. feeding speed: 100 m/min, give you the biggest capacity.
7.Saw speed in 7000 R.P.M to match the high speed feeding.
8. Easy operate. Change size all by motor.
|
Model |
DS-4x8 |
DS-5x5 |
|
Max. workable size (Width) |
750~1270mm |
1200~1550 mm |
|
Max. workable size (Length) |
1800~2500mm |
1200~1550 mm |
|
Tip Saw |
Ø 12”*100T/120T-4 Sets mm |
Ø 12”*100T/120T-4 Sets mm |
|
Tip Saw Rotating Speed |
7000rpm |
7000rpm |
|
Feeding Speed |
25~100 mm/min |
25~100 mm/min |
|
Saw motor |
7.5kw |
7.5Kw |
|
Feeding Motor |
3.7Kw & 5.5kw |
3.7kw |
