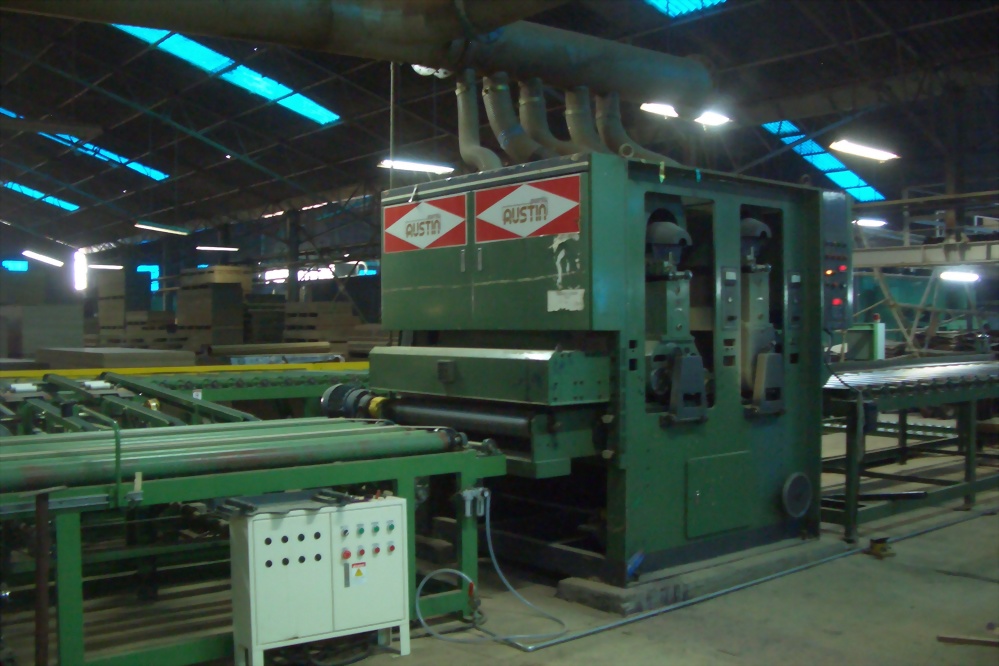

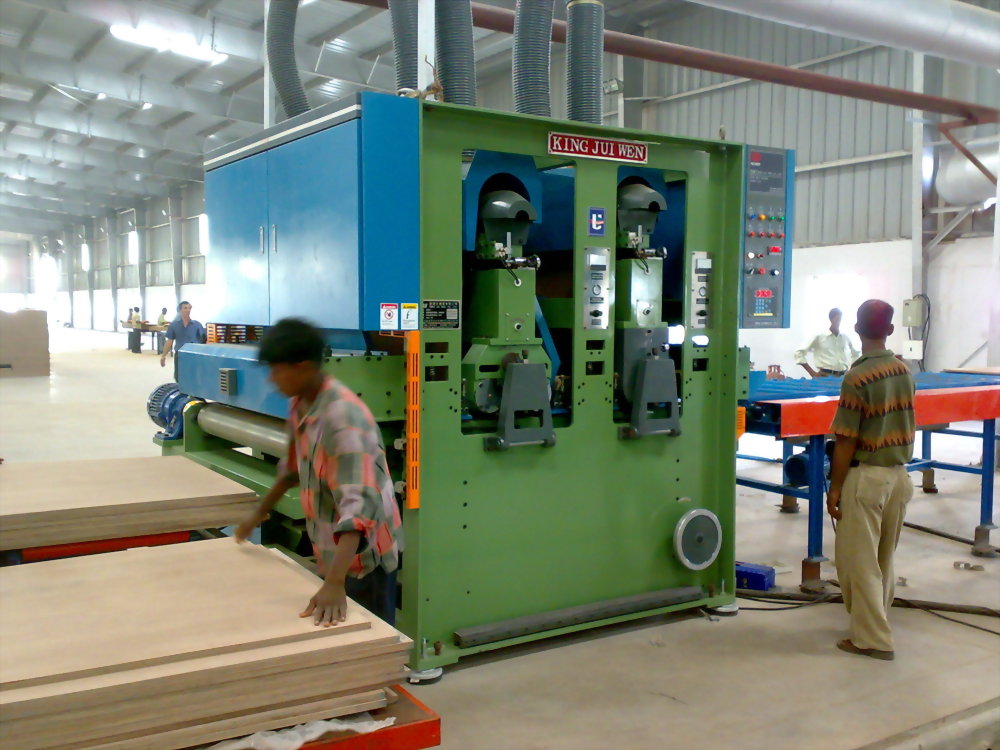

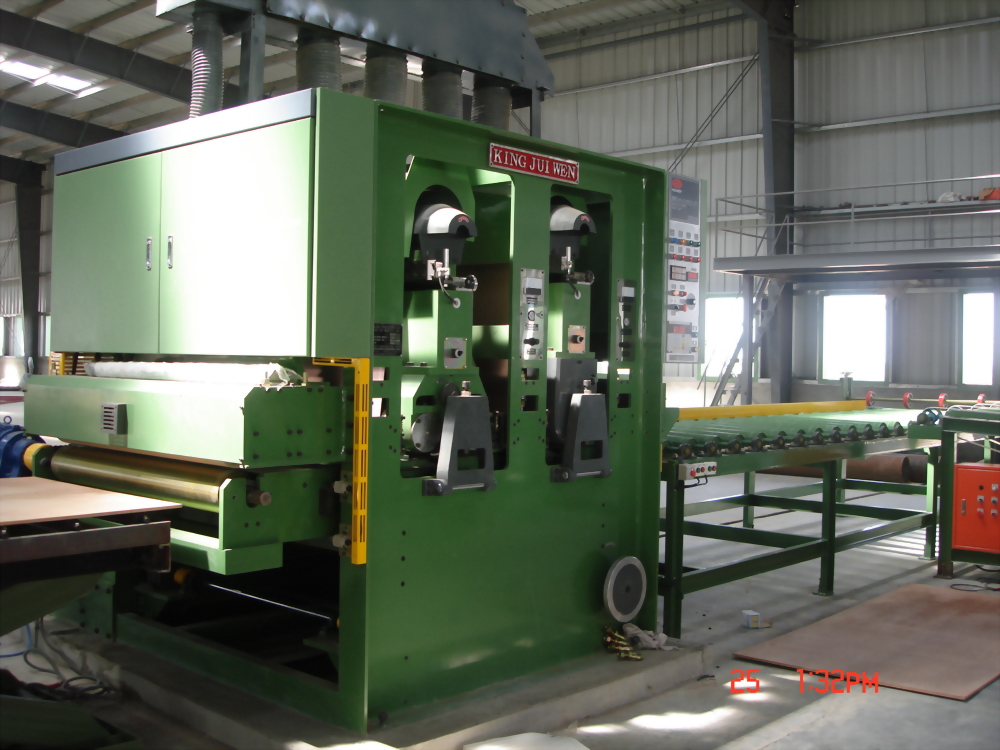

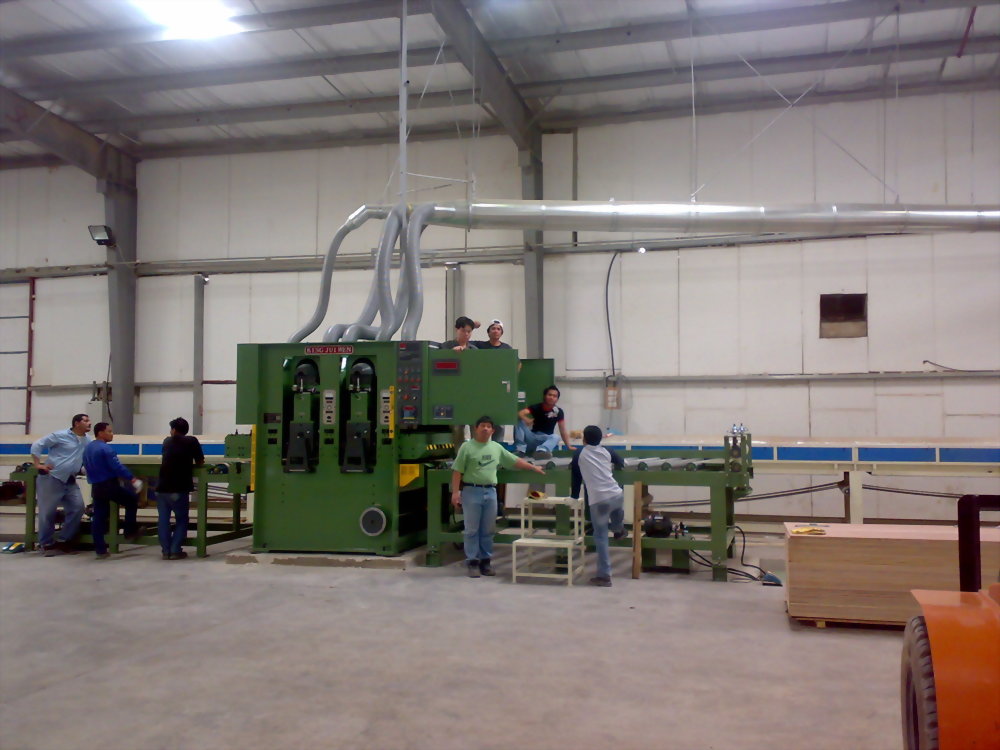

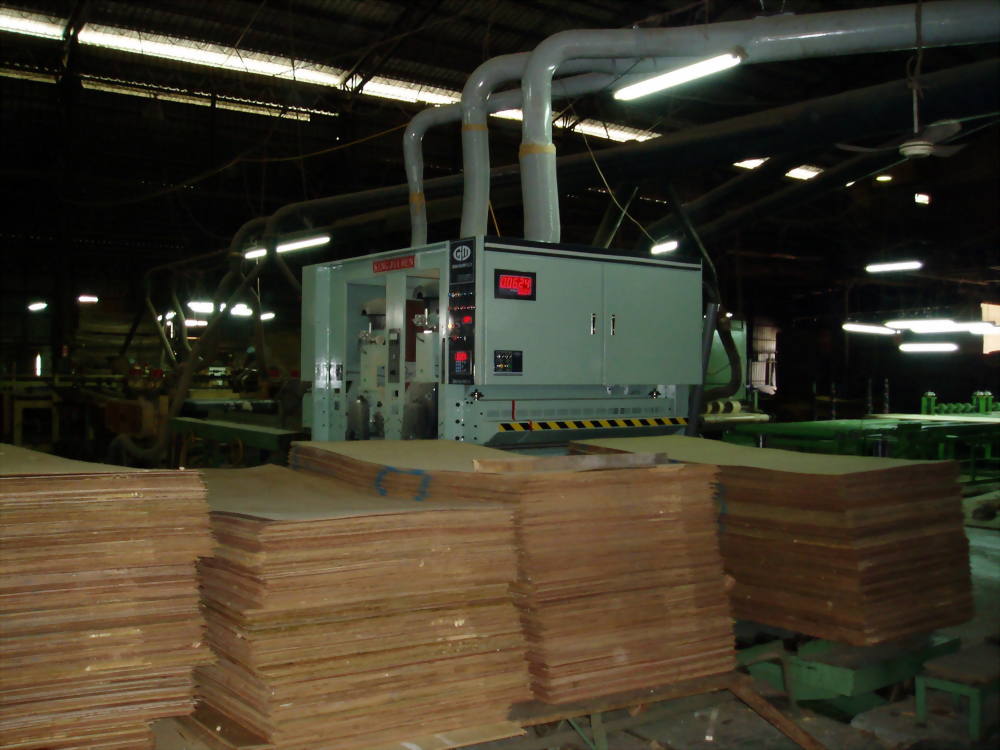

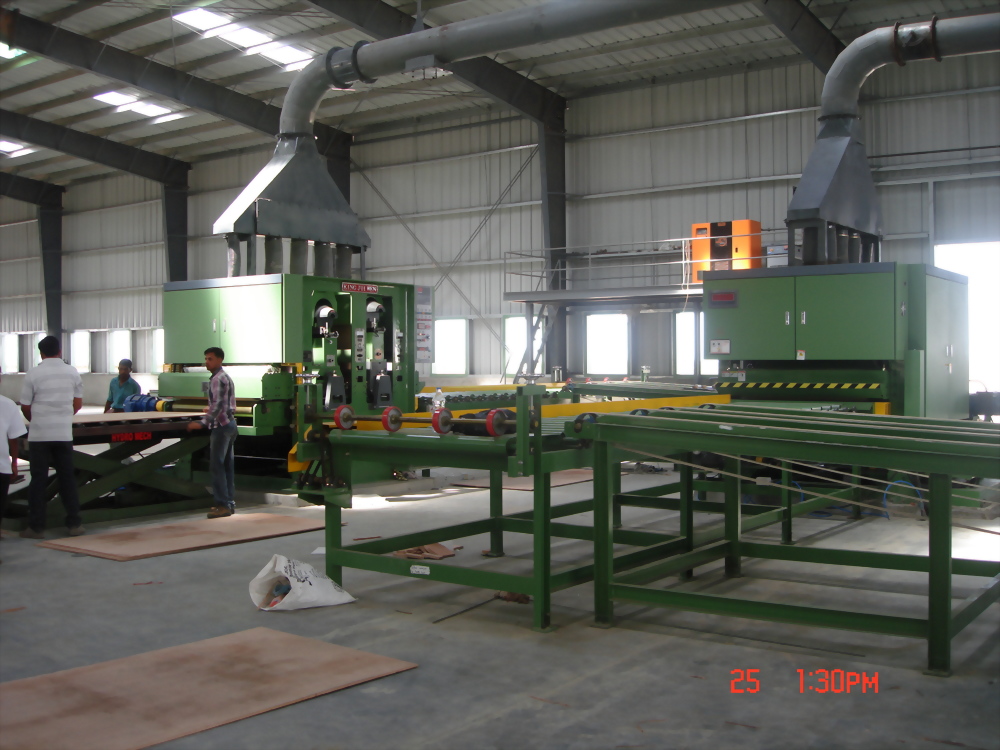

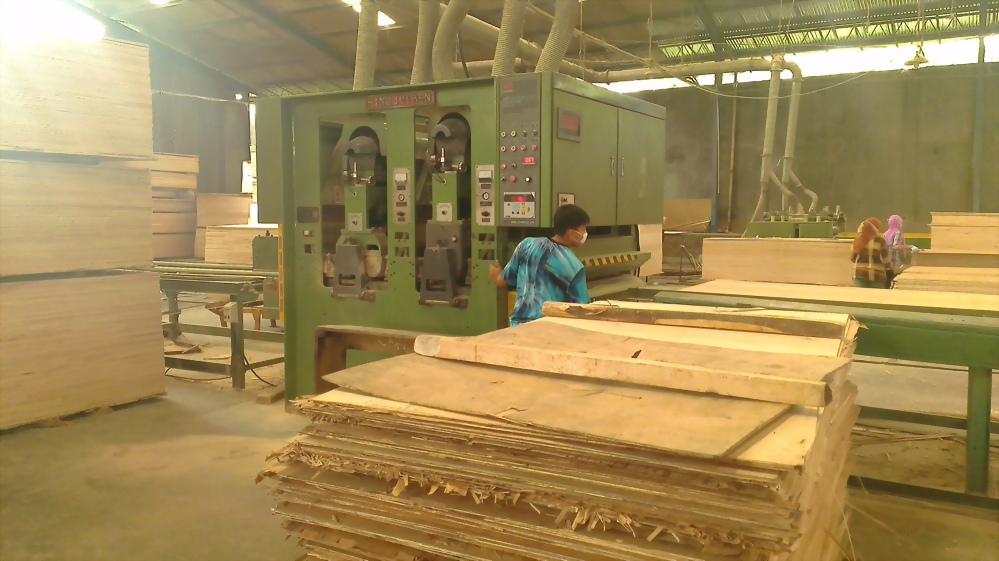

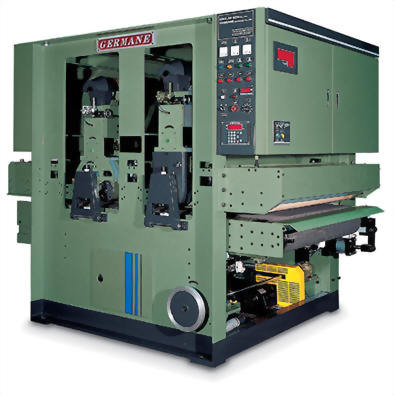

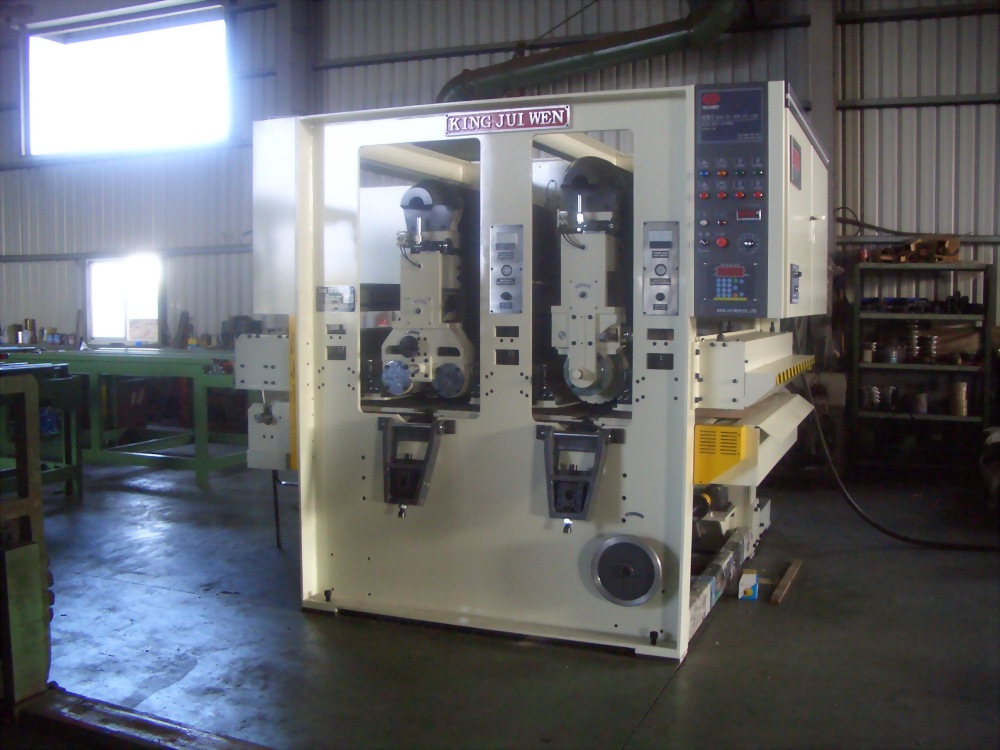

2 Heads Top Sander

Model : S type / SB type








Max. Workable Size : 1270Wx120Tmm
Superior thickness accuracy and surface finish.
Ruggedly constructed throughout for heavy duty sanding operation at all times.
Electric digital read-out for accurate adjustment of thickness and quick reference.
Safety and easy maintenance.
We can change to all sanding roller or sanding platen type as your request.
Increasing motor horsepower as your request.
Change rubber sanding roller's hardness or change to steel sanding roller.
Making special order type for you.

Model 4'-S-2RP
(ROLLER FEEDING TYPE)
4'-S-2PP
(ROLLER FEEDING TYPE)
4'-SB-2RP
(BELT FEEDING TYPE)
4'-SB-2PP
(BELT FEEDING TYPE)
Max, workable width 1270 mm 1270 mm 1270 mm 1270 mm
Min. workable length 780 mm 780 mm 780mm 780 mm
Variable feeding speed 30~100 M/Min 30~100 M/Min 15~60 m/min 15~60 m/min
Motor for no.1 sanding head 37KW
RUBBER DRUM
37KW
SANDING PAD
37KW
RUBBER DRUM
37KW
SANDING PAD
Motor for no.2 sanding head 30KW
SANDING PAD

30KW
SANDING PAD

30KW
SANDING PAD

30KW
SANDING PAD

NOTOR FOR NO. 3 SANDING HEAD NO NO NO NO
Reducer for feeding conveyor 5.5KW  5.5KW  7.5KW  7.5KW
Reducer for elevation (up & down) 0.75KW

0.75KW

0.75KW  0.75KW
Motor for brushing roller 0.75KW  0.75KW 0.75KW 0.75KW
Sanding belt size 51" (W) x 103" 51" (W) x 103" 51" (W) x 103" 51" (W) x 103"


Model 5'-S-2RP
(ROLLER FEEDING TYPE)
5'-S-2PP
(ROLLER FEEDING TYPE)
5'-SB-2RP
(BELT FEEDING TYPE)
5'-SB-2PP
(BELT FEEDING TYPE)
Max, workable width 1600 mm 1600 mm 1600 mm 1600 mm
Min. workable length 780 mm 780 mm 780mm 780 mm
Variable feeding speed 30~100 M/Min 30~100 M/Min 15~60 m/min 15~60 m/min
Motor for no.1 sanding head 55KW
RUBBER DRUM
55KW
SANDING PAD
55KW
RUBBER DRUM
55KW
SANDING PAD
Motor for no.2 sanding head 37KW
SANDING PAD

37KW
SANDING PAD

37KW
SANDING PAD

37KW
SANDING PAD


Reducer for feeding conveyor 7.5KW  7.5KW  11KW  11KW
Reducer for elevation (up & down) 0.75KW

0.75KW

0.75KW  0.75KW
Motor for brushing roller 0.75KW  0.75KW 0.75KW 0.75KW
Sanding belt size 64" (W) x 103" 64" (W) x 103" 64" (W) x 103" 64" (W) x 103"
