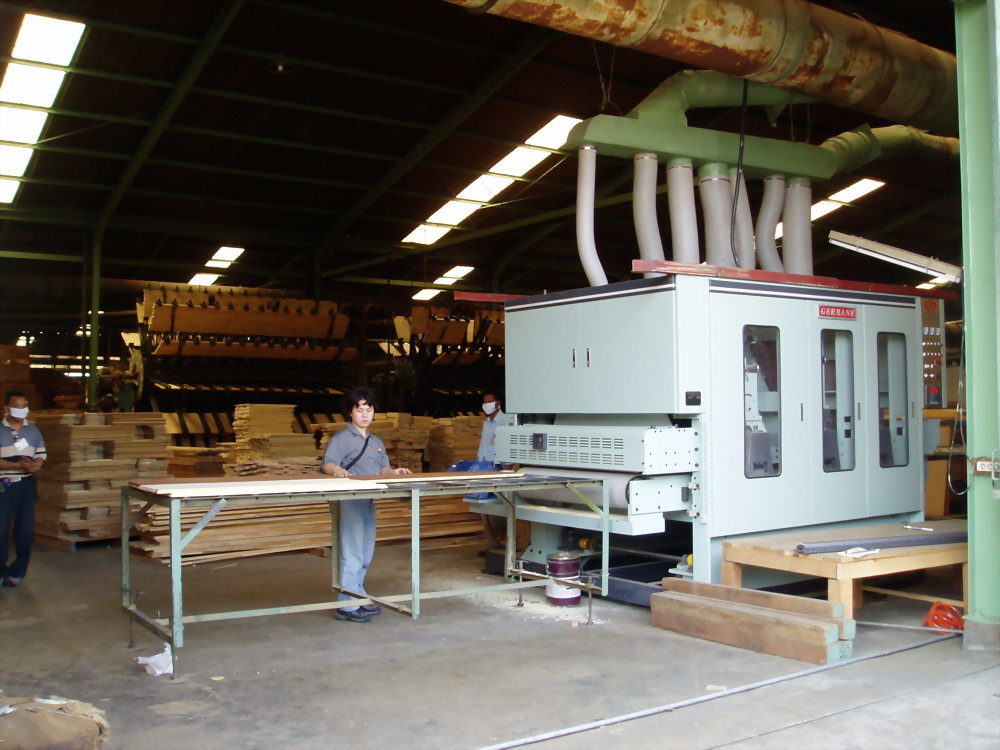

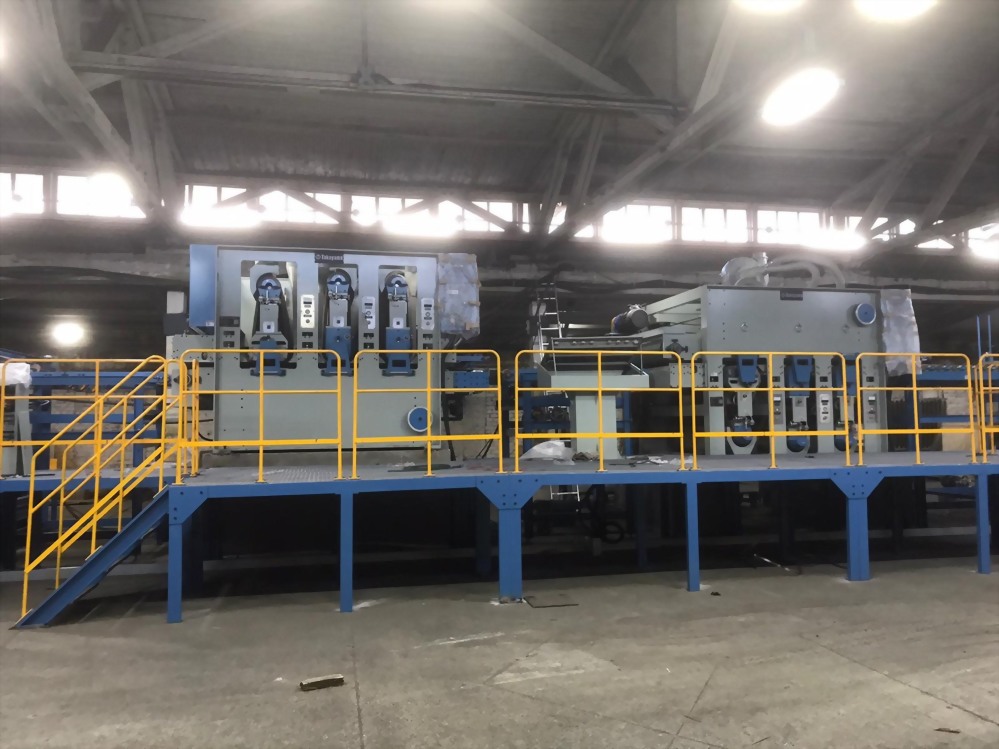

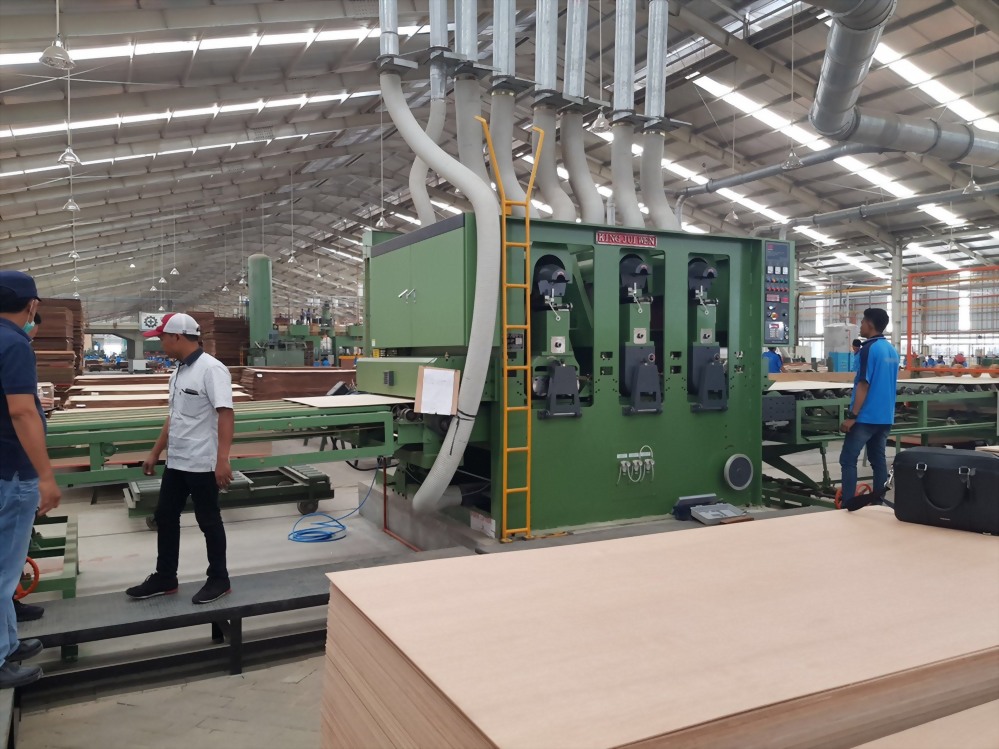

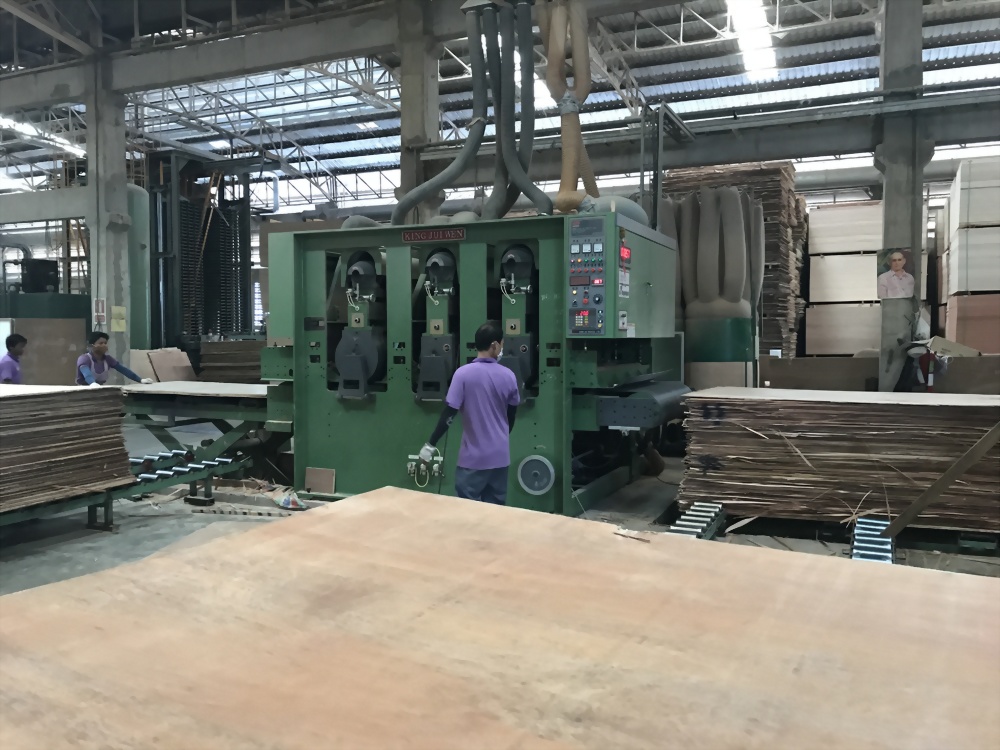

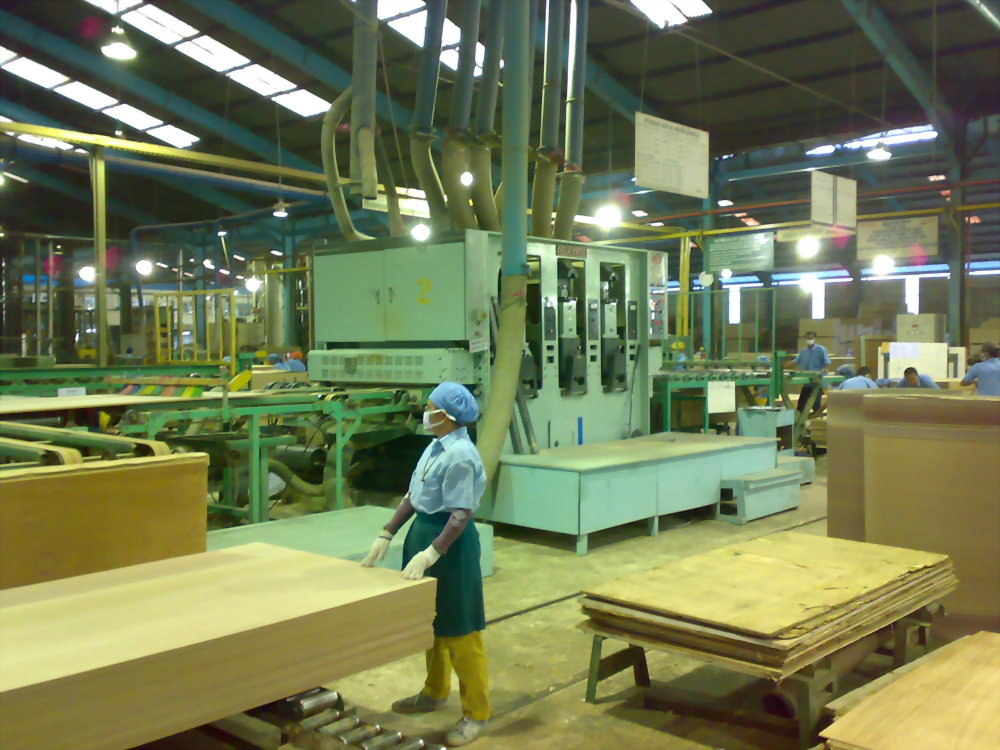

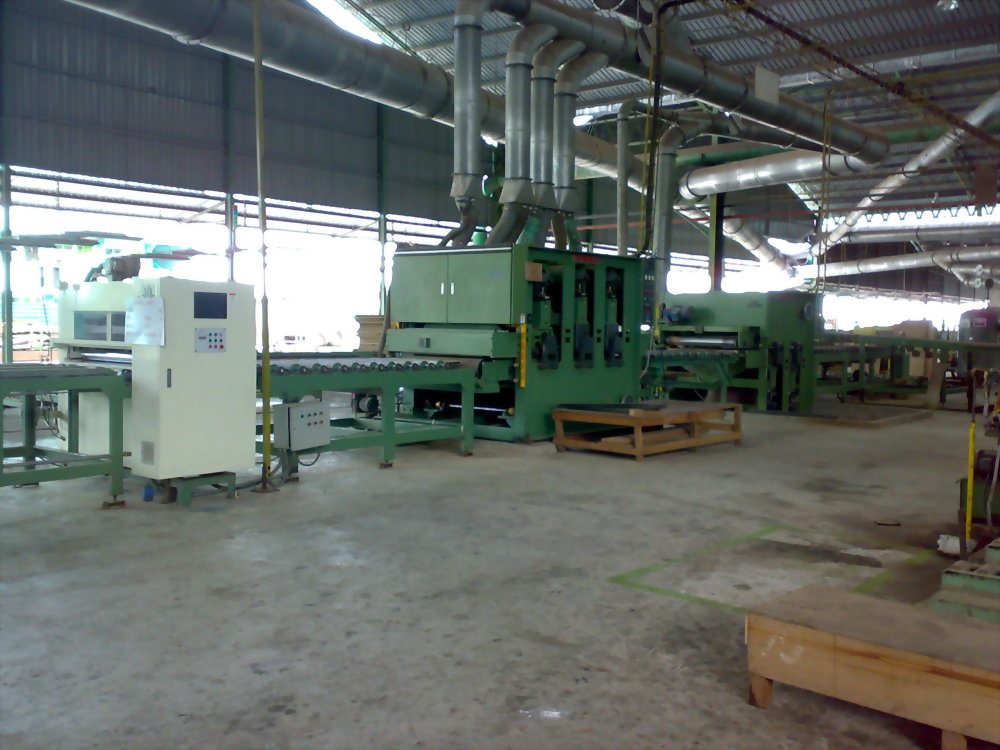

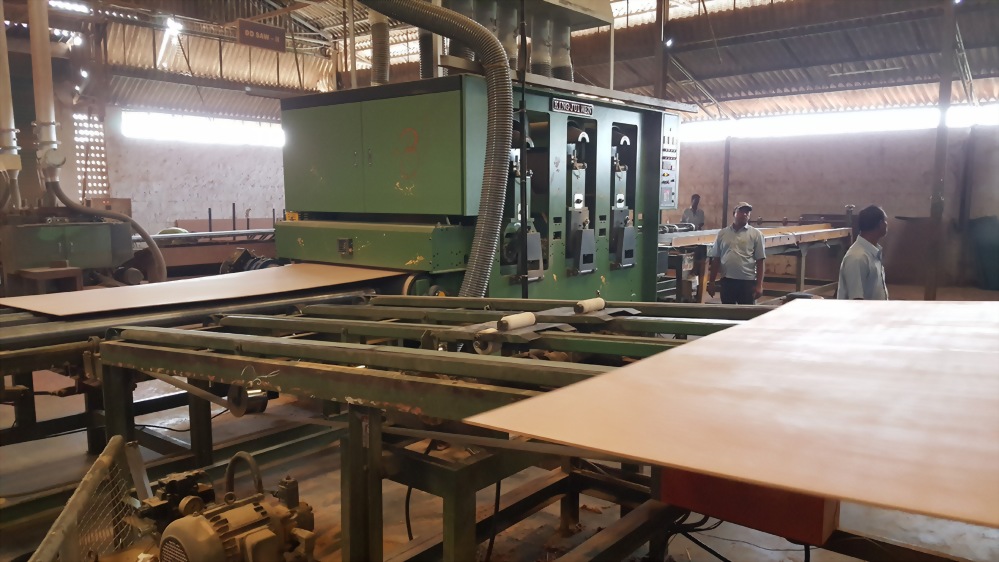

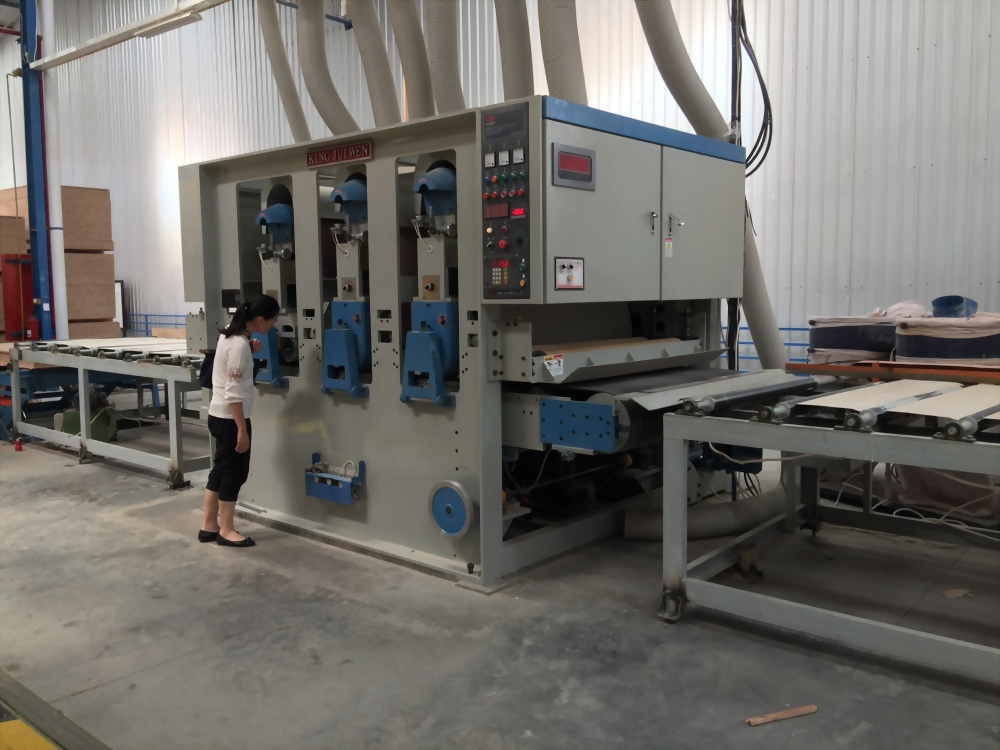

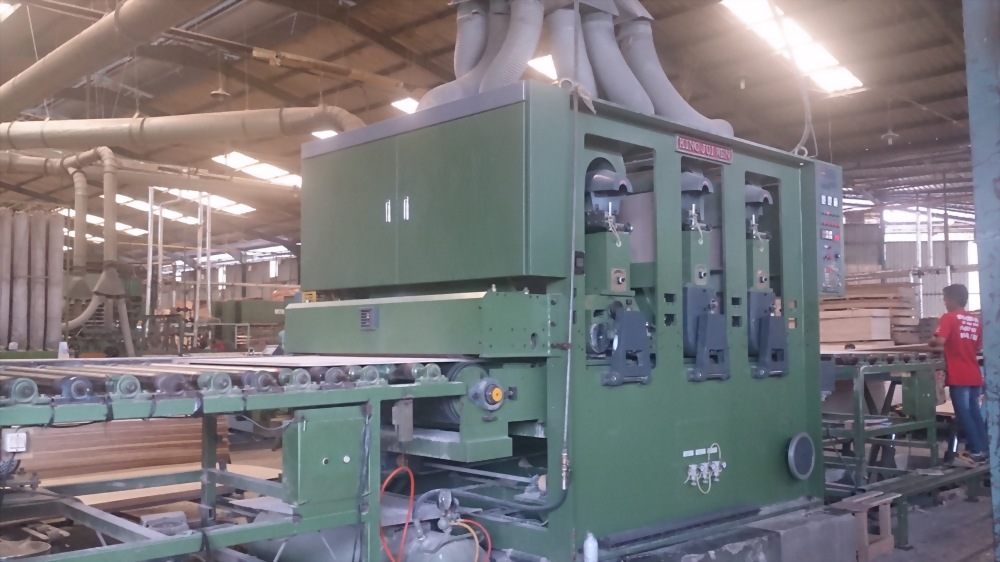

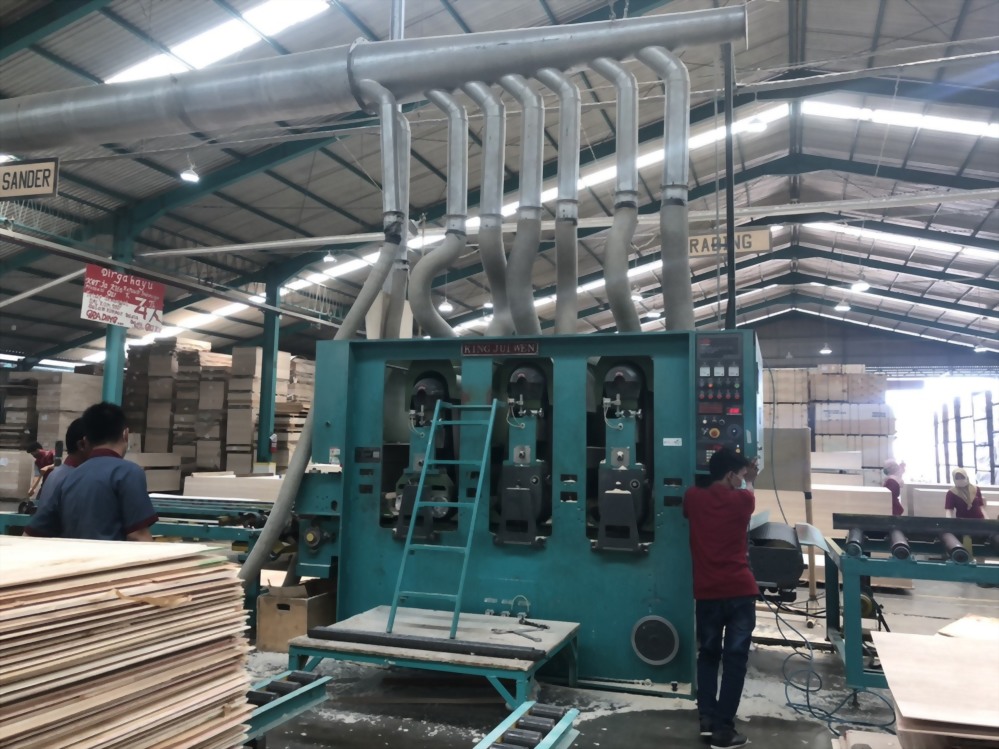

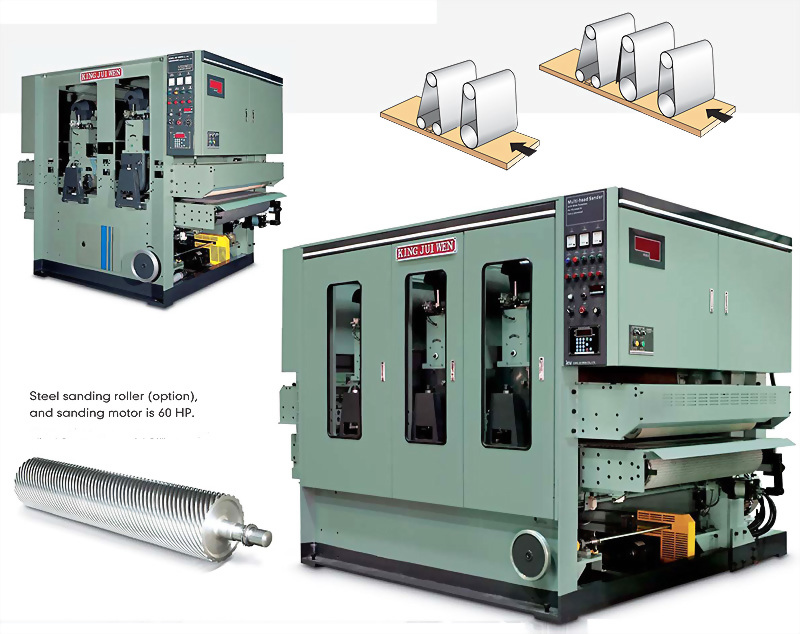

3 Heads Sander (Belt Feeding)
Model :
SB type
‧ Superior thickness accuracy and surface finish.
‧ Suitable for big capacity plywood production.Max. feeding speed 60 m/min.
‧ Suitable for thickness control sanding.
‧ Suitable for high quality plywood, like floor base.
‧ Safety and easy maintenance.
‧ We can change to all sanding roller or sanding platen type as your request.
| Model |
4-SB-3SRP (FOR PLYWOOD) |
5-SB-3SRR (FOR PLYWOOD) |
|
| Max, workable width | 1270 mm | 1600 mm |
|
| Min. workable length | 780 mm | 780 mm |
|
| Variable feeding speed | 30~100 M/Min | 30~100 M/Min |
|
| Motor for no.1 sanding head |
55KW STEEL DRUM |
75KW STEEL DRUM |
|
| Motor for no.2 sanding head |
37KW RUBBER DRUM |
45KW RUBBER DRUM |
|
| Motor for no.3 sanding head |
30KW SANDING PAD |
37KW RUBBER DRUM |
|
| Reducer for feeding conveyor | 11 KW |
15KW |
|
| Reducer for elevation (up & down) | 0.75KW |
0.75KW |
|
| Motor for brushing roller | 0.75KW | 1.5KW |
|
| Sanding belt size | 51" (W) x 103" | 64" (W) x 103" |
|
| Custom machine specifications are available.可依客戶要求訂製。 | |||
