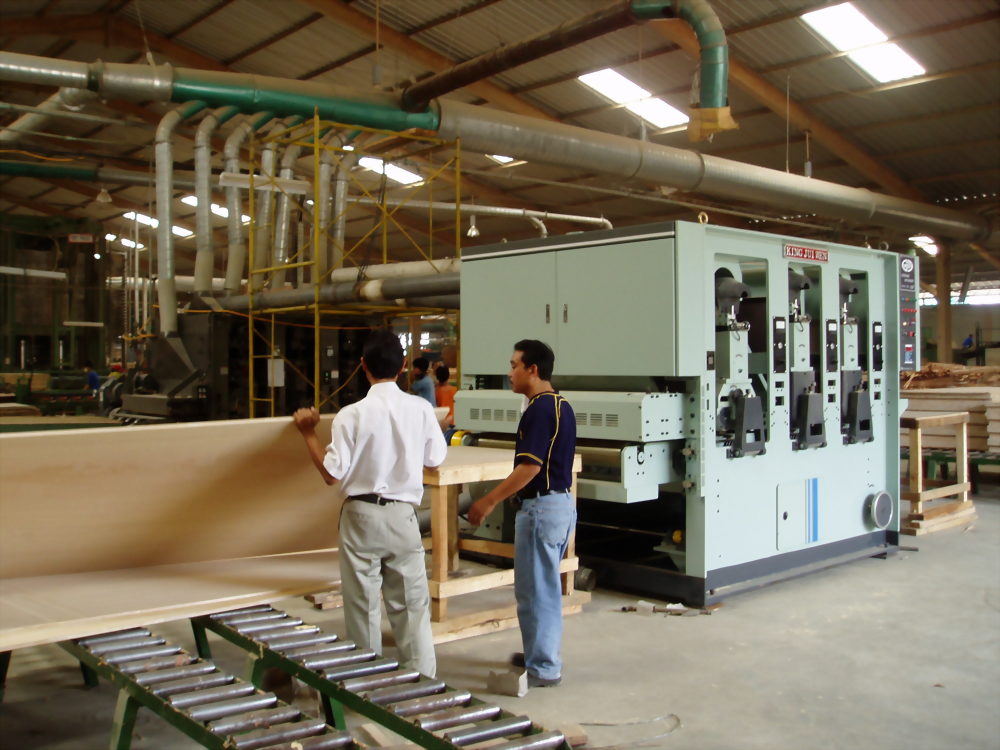

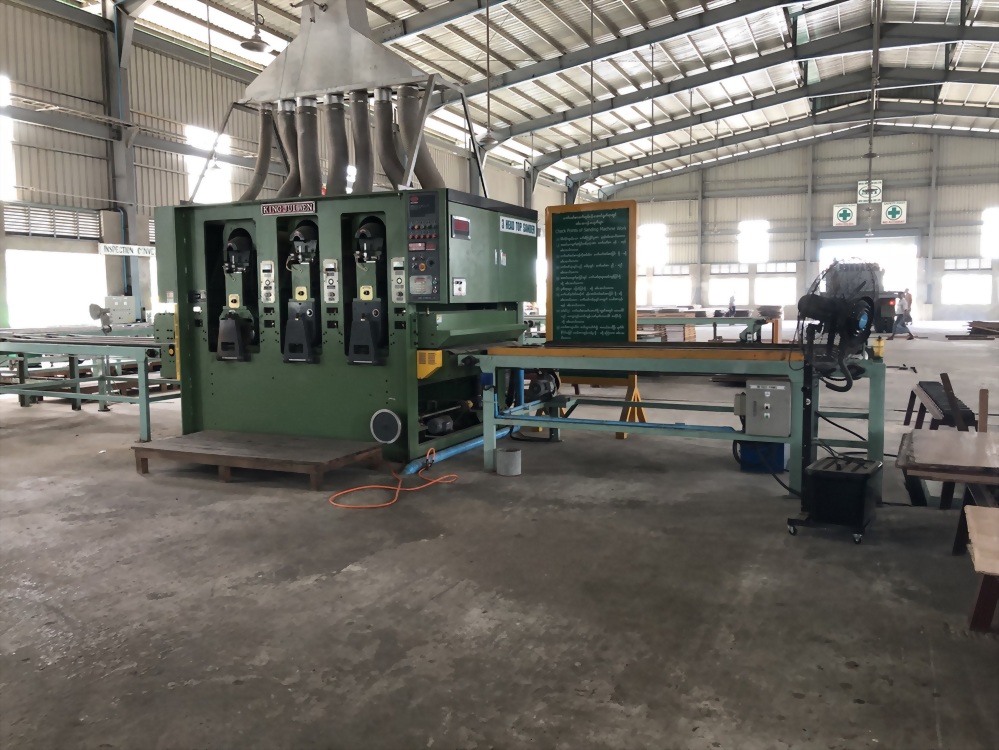

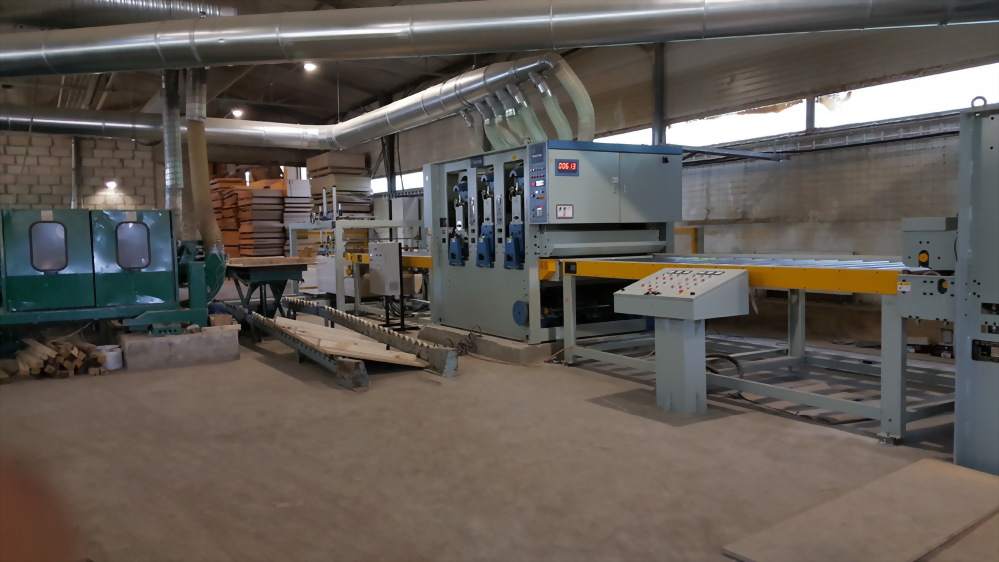

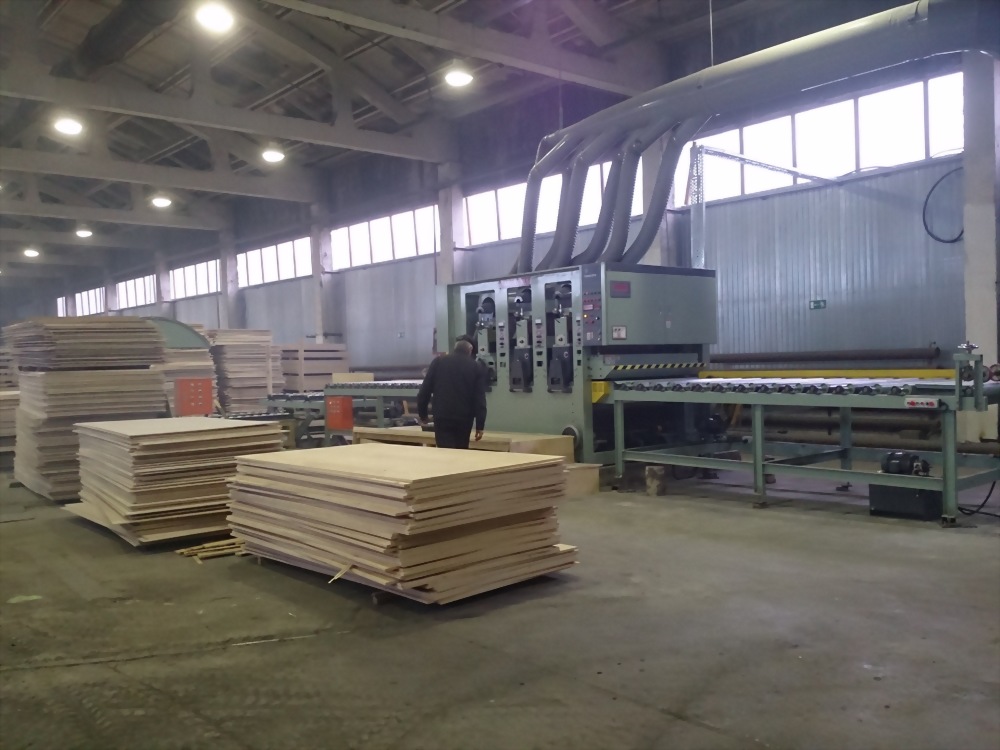

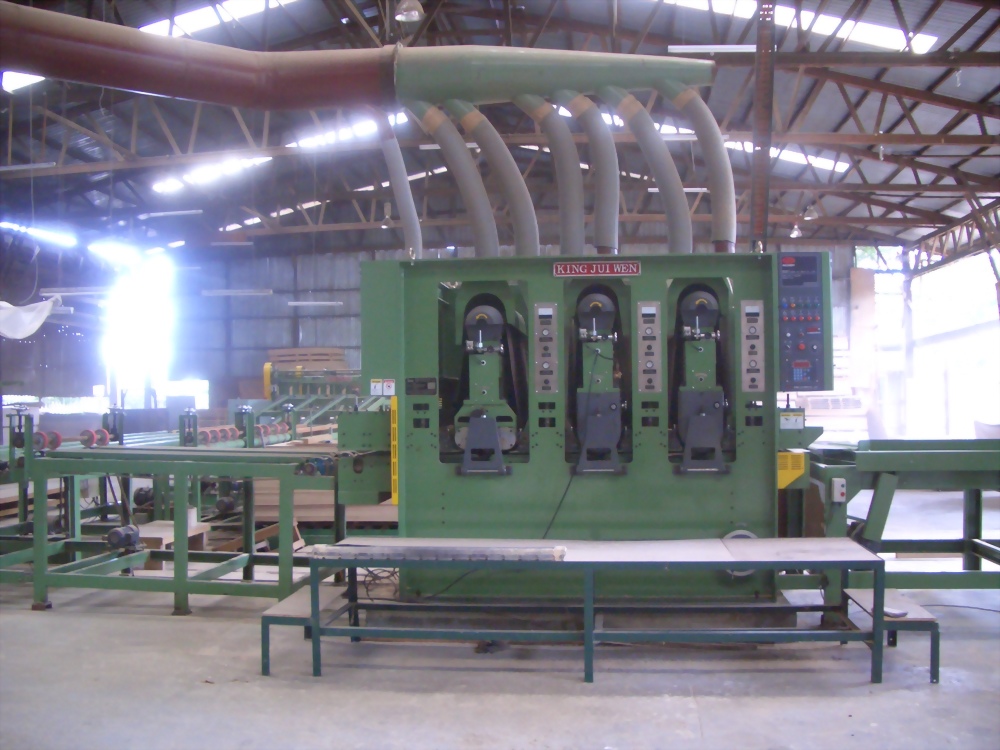

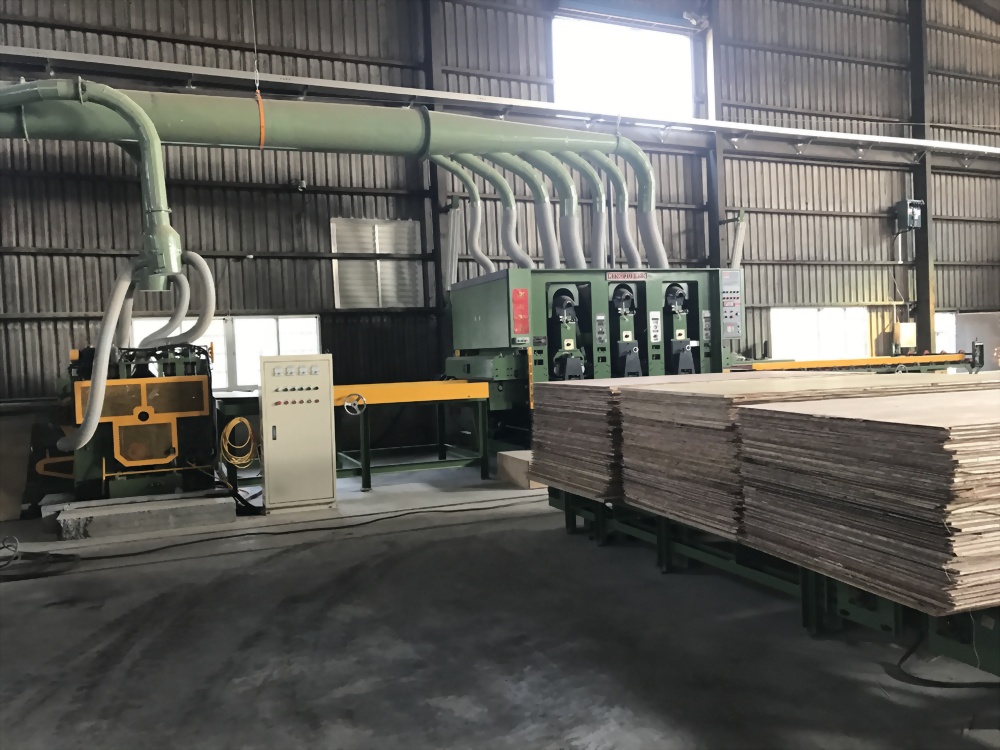

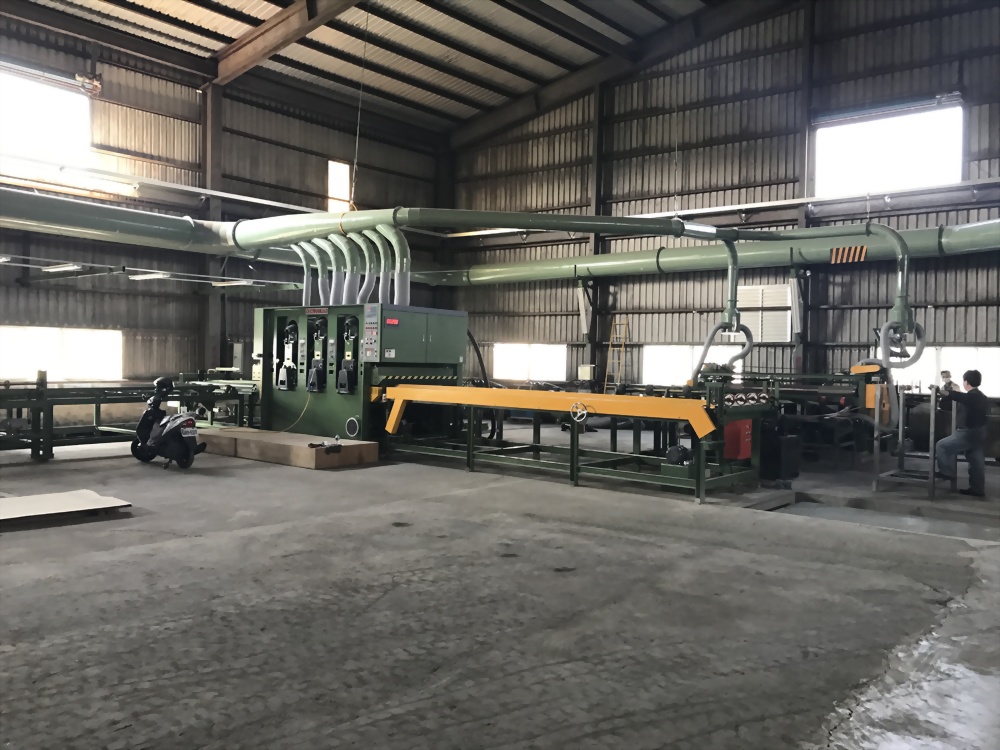

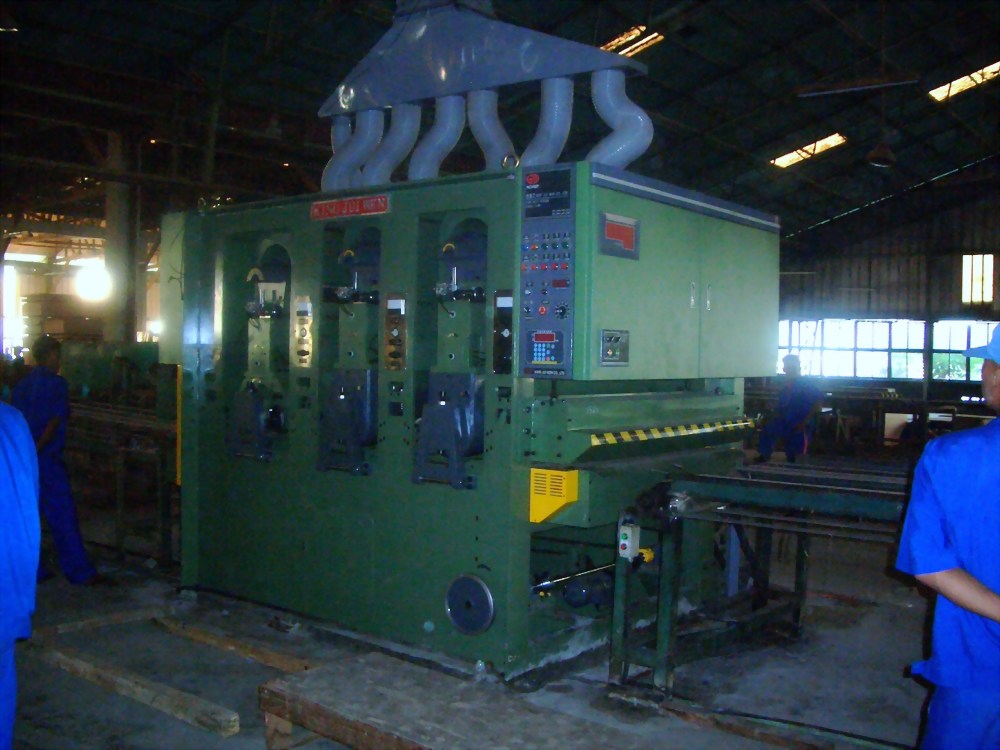

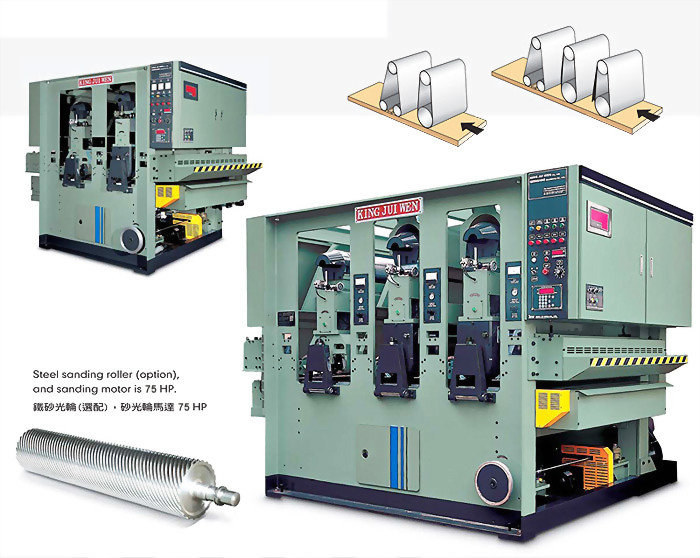

3 Heads Sander (Roller Feeding)

Model : S type




Max. Feeding Speed: 100 m/min
‧ Superior thickness accuracy and surface finish.
‧ Suitable for big capacity plywood production. Max. feeding speed 100 m/min.
‧ Suitable for sanding thin plywood.

‧ Safety and easy maintenance.
‧ We can change to all sanding roller or sanding platen type as your request.


Model 4'-S-3RRP 5'-S-3SRR

Max, workable width 1270 mm 1600 mm
Min. workable length 780 mm 780 mm
Variable feeding speed 30~100 M/Min 30~100 M/Min
Motor for no.1 sanding head

37KW

RUBBER DRUM

75KW

STEEL DRUM


Motor for no.2 sanding head

30KW

RUBBER DRUM

45KW

RUBBER DRUM


Motor for no.3 sanding head

30KW

SANDING PAD

37KW

RUBBER DRUM


Reducer for feeding conveyor 7.5KW

11KW


Reducer for elevation (up & down) 0.75KW

1.5KW


Motor for brushing roller 0.75KW  0.75KW
Sanding belt size 51" (W) x 103" 64" (W) x 103"
Custom machine specifications are available.可依客戶要求訂製。
